Name: 09662636812
Brand: HARTING
SKU: 09662636812
Price: 6.78000 USD
Availability: InStock

new-10%

09662636812

Manufacturer part number:09662636812

Manufacturer:HARTING

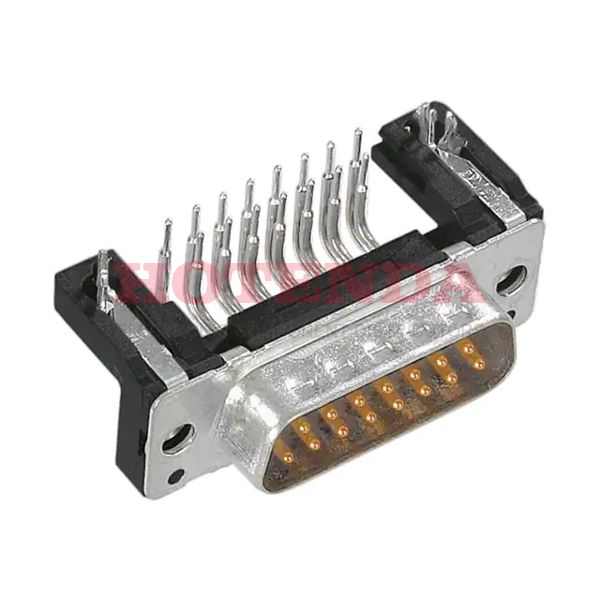

Description:D-Sub Plug, Male Pins 15-Position Signal Solder 2 DA A Through Hole, Right Angle Copper Alloy Steel

Case Package:SOT-23

Datasheet:09662636812 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material	PBT
Shell Material, Finish	Steel
Operating Temperature	-55°C~125°C
Packaging	Bulk
Feature	Board Lock, Grounding Indents
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
HTS Code	8536.69.40.30
Subcategory	D Type Connectors
Contact Finish - Mating	NOT SPECIFIED
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	7.5A
Total Number of Contacts	15
Shell Finish	TIN
Reference Standard	UL
Body Length or Diameter	1.543 inch
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Body Breadth	0.508 inch
UL Flammability Code	94V-0
Empty Shell	NO
Body Depth	0.583 inch
Contact Resistance	10mOhm
Insulation Resistance	10000000000Ohm
Flange Feature	Housing/Shell (4-40)
Mating Contact Pitch	0.108 inch
Body/Shell Style	RECEPTACLE
Dielectric Withstanding Voltage	1000VAC V
Connector Style	D-Sub
Insertion Force-Max	3.336 N
Withdrawl Force-Min	3.336 N
Contact Form	Machined
Shell Size, Connector Layout	2 DA A
Backset Spacing	0.409 (10.40mm)
Length - Termination	0.114 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

09662636812 Product Details

09662636812 Overview

Packaging is in the form of Plug, Male Pins.Through Hole, Right Angle is the mounting type for the device.We use a Bulk case to package the product.A number of features make it more powerful because of its Board Lock, Grounding Indents feature.It is mounted by Through Hole.In this case, the device runs at -55°C~125°C Operating Temperature.
