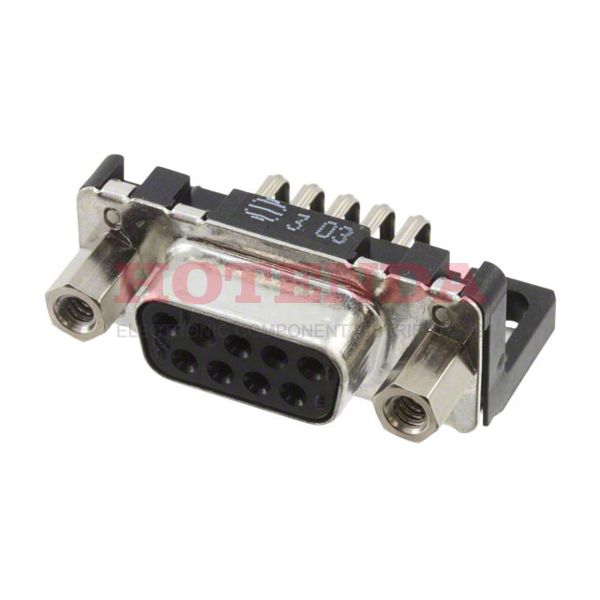

Name: 09661527613
Brand: HARTING
SKU: 09661527613
Price: 5.13000 USD
Availability: InStock

new-10%

09661527613

Manufacturer part number:09661527613

Manufacturer:HARTING

Description:09661527613 datasheet pdf and D-Sub Connectors product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:09661527613 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material	Polybutylene
Shell Material, Finish	Steel
Operating Temperature	-55°C~125°C
Packaging	Bulk
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	9
Termination	Solder
Connector Type	Receptacle, Female Sockets
Number of Rows	2
Gender	Receptacle
Voltage - Rated	1kV
Subcategory	D Type Connectors
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	6.5A
Pitch	2.54mm
Total Number of Contacts	9
Orientation	Right Angle
Depth	21.2mm
Current Rating	7.5A
Shell Finish	TIN
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Empty Shell	NO
Flange Feature	Mating Side, Female Screwlock (4-40)
Body/Shell Style	PLUG
Connector Style	D-Sub
Number of Ports	1
Insertion Force-Max	3.336 N
Contact Form	Stamped
Shell Size, Connector Layout	1 DE E
Backset Spacing	0.409 (10.40mm)
Length	31.2mm
Width	21.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

09661527613 Product Details

09661527613 Overview

A Receptacle, Female Sockets package is included with it.There is a mounting type of Through Hole, Right Angle for this device.Packaged in a Bulk case.A variety of tasks can be performed using its 1 ports.A number of advantages are provided by its Board Lock feature.Part Through Hole is mounted to the part.In this chip, there are no terminations other than 9.The device runs in -55°C~125°C Operating Temperature.
