Name: 09653217703
Brand: HARTING
SKU: 09653217703
Price: 5.39000 USD
Availability: InStock

new-10%

09653217703

Manufacturer part number:09653217703

Manufacturer:HARTING

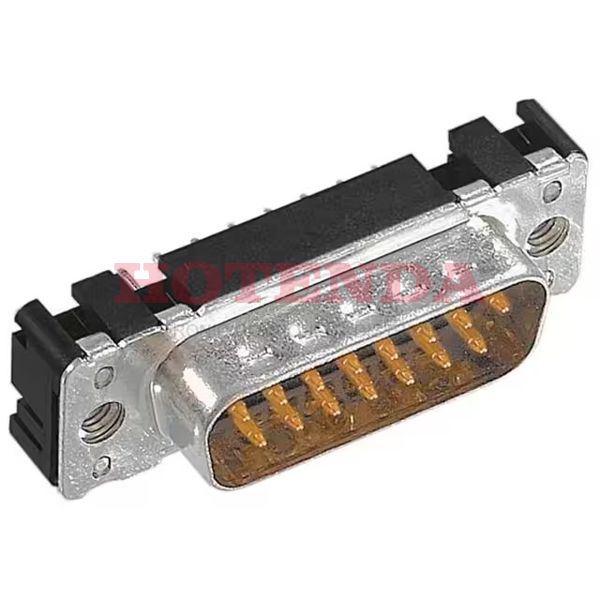

Description:D-Sub Plug, Male Pins 25-Position Signal Solder 3 DB B Through Hole Copper Alloy Steel

Case Package:SOT-23

Datasheet:09653217703 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material	PBT
Shell Material, Finish	Steel
Operating Temperature	-55°C~125°C
Packaging	Bulk
Feature	Grounding Indents
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug, Male Pins
Number of Positions	25
Number of Rows	2
Contact Finish - Mating	NOT SPECIFIED
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	6.5A
Total Number of Contacts	25
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Empty Shell	NO
Flange Feature	Mating Side, Female Screwlock (4-40)
Connector Style	D-Sub
Contact Form	Stamped
Shell Size, Connector Layout	3 DB B
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

09653217703 Product Details

09653217703 Overview

The product comes in a package of Plug, Male Pins.Through Hole indicates that the device is mounted.Packaging for the product is carried out via a Bulk case.A number of advantages can be derived from its Grounding Indents feature.It's mounted by Through Hole.In this case, the device operates at -55°C~125°C Operating Temperature.
