HARTING

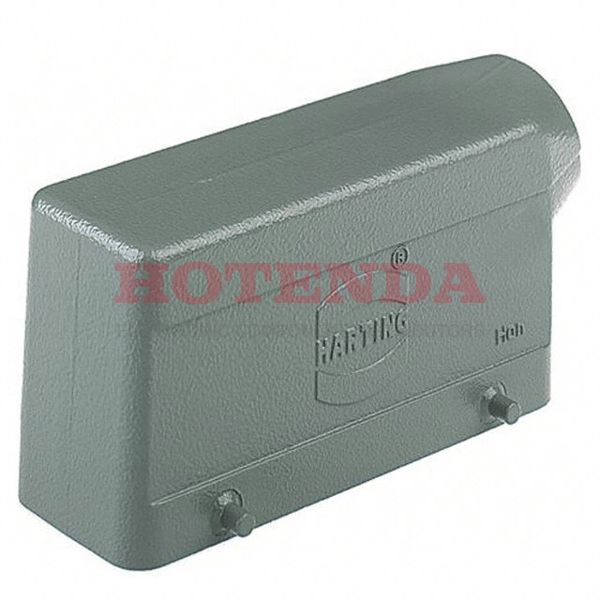

09300241520 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300241520 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Material Metal, Silver
Housing Material Aluminum, Die Cast
Body Material Metal
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 4.724Lx1.693W x 2.461 H 120.00mmx43.00mmx62.50mm
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Hood
Number of Positions 8
Color Grey
Gender Female
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Number of Contacts 5
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 24B
Thread SizePG21
Lock Location Locking Clip (2) on Base Bottom
Housing Finish Powder Coated
Height 62.5mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
In-Stock:409 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$22.18000$22.18
10$20.02300$200.23
25$19.18400$479.6
50$17.98500$899.25
100$17.38550$1738.55
250$16.42632$4106.58
500$15.94670$7973.35

09300241520 Product Details

09300241520 Overview


The packaging is Hood.An orange Bulk case is used to package the product.The product is a member of the Han? B Series.In this case, the device operates at -40°C~125°C Operating Temperature.

09300241520 Features


Han? B series

09300241520 Applications


There are a lot of HARTING 09300241520 Heavy Duty Connectors applications.

  • Energy efficient lighting (LED)
  • All Electrical Machinery
  • Measuring & Control Technology
  • Automotive Electronics
  • Blowers
  • Military Technology
  • Anywhere power is distributed
  • Communication
  • Variable speed/frequency drivers
  • Data Technology
