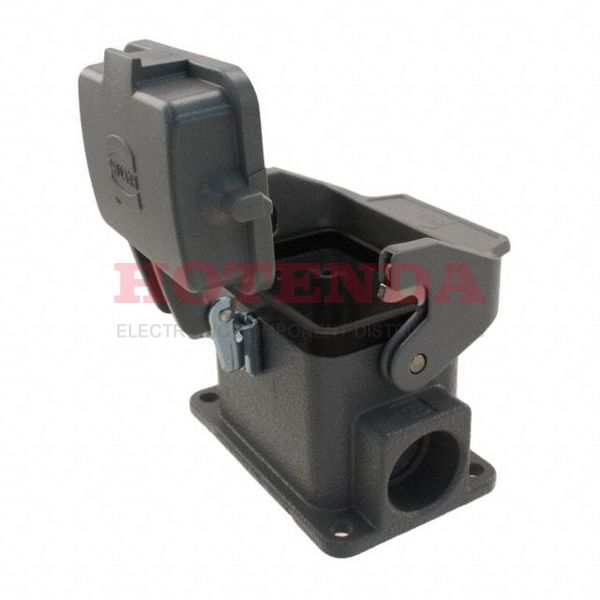

HARTING

09300061256 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300061256 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Package / Case Metal
Material Zinc
Housing Material Aluminum, Die Cast
Body Material Aluminium, Metal
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 3.228Lx2.047W x 2.028 H 82.00mmx52.00mmx51.50mm
Feature Cover
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Cable
Connector Type Base - Box Mount
Color Grey
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 6B
Thread SizePG16
Lock Location Locking Clip (1) on Base Bottom
Housing Finish Powder Coated
Height 51.5112mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:240 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$32.652048$32.652048
10$30.803818$308.03818
100$29.060206$2906.0206
500$27.415288$13707.644
1000$25.863480$25863.48

09300061256 Product Details

09300061256 Overview


Packaging is in the form of Base - Box Mount.The product is packaged in a Bulk case.The product is part of the Han? B Series.An enclosed device is enclosed in the packaging with the Metal.Many aspects of its Cover feature increase its effectiveness.Device runs at -40°C~125°C Operating Temperature.

09300061256 Features


Han? B series

09300061256 Applications


There are a lot of HARTING 09300061256 Heavy Duty Connectors applications.

  • Blowers
  • Instrumentation
  • Energy efficient lighting (LED)
  • Automotive Electronics
  • Telecommunications
  • Variable speed/frequency drivers
  • Control panels
  • Communication
  • Data Technology
  • Industrial Automation
