Name: 09185146324
Brand: HARTING
SKU: 09185146324
Price: 2.07000 USD
Availability: InStock

new-10%

09185146324

Manufacturer part number:09185146324

Manufacturer:HARTING

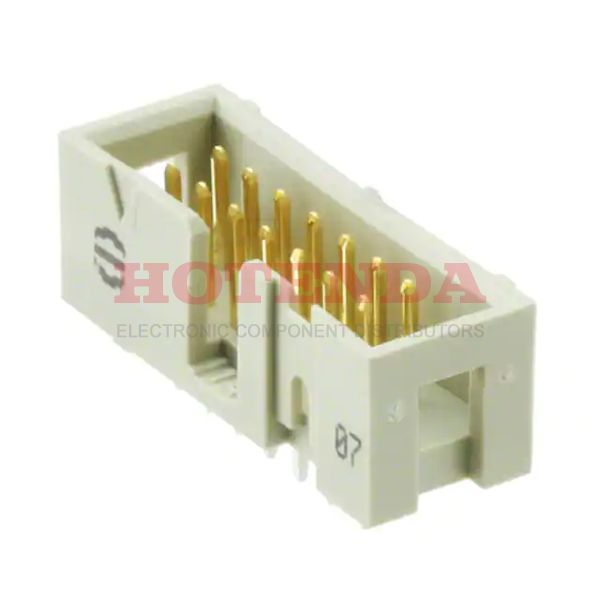

Description:09185146324 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:09185146324 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	Polybutylene
Operating Temperature	-55°C~125°C
Packaging	Tray
Series	SEK
Feature	Keying Slot
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Color	Grey
Number of Rows	2
Gender	Male
Additional Feature	STANDARD: IEC 60603-13; DIN EN 60603-13
HTS Code	8536.69.40.40
Fastening Type	Latch Holder
Voltage - Rated DC	350V
Contact Finish - Mating	NOT SPECIFIED
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	9.2mm
Insulation Height	0.350 8.89mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.100 2.54mm
Insulation Color	Gray
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	350V
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.114 2.90mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Lead Pitch	2.54mm
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.366 inch
UL Flammability Code	94V-0
Lead Length	29mm
Working Voltage	350V
Rated Current (Signal)	2A
Contact Resistance	20mOhm
Insulation Resistance	1GOhm
Mating Contact Pitch	0.1 inch
Max Current Rating	1A
Polarization Key	POLARIZED HOUSING
Number of Poles	14
Contact Current Rating	1A
Hole Diameter	900 μm
Test Voltage	1kV
Height	12.35mm
Length	9.3mm
Width	25.4mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

09185146324 Product Details

09185146324 Overview

Currently, it is packaged in Header.Its mounting type is Through Hole.To package the product, we use a Tray case.It's from the SEK Series.Furthermore, there are other features such as STANDARD: IEC 60603-13; DIN EN 60603-13, to name a few.This feature renders it more powerful in a number of ways because of its Keying Slot feature.It is mounted by Through Hole.This device operates at a temperature of -55°C~125°C.
