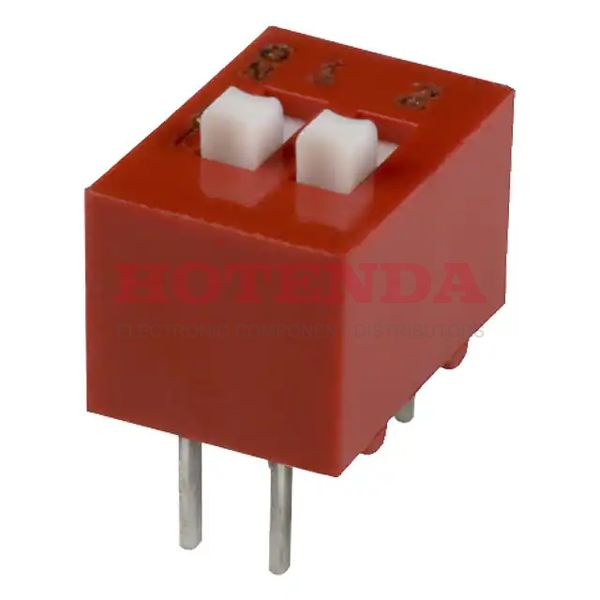

78B02 datasheet pdf and DIP Switches product details from Grayhill Inc. stock available on our website
SOT-23
78B02 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
9 Weeks
Contact Material
Copper Alloy
Mount
Through Hole
Mounting Type
Through Hole
Body Material
Thermoplastic
Operating Temperature
-40°C~85°C
Packaging
Tube
Published
2003
Series
78
JESD-609 Code
e0
Pbfree Code
no
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
PC Pins
ECCN Code
EAR99
Number of Positions
2
Terminal Finish
Tin/Lead (Sn/Pb)
Voltage - Rated
30VDC
HTS Code
8536.50.90.65
Voltage - Rated DC
30V
Pitch
0.100 2.54mm Full
Packing Method
TAPE AND REEL
Orientation
Straight
Terminal Pitch
2.54mm
Current Rating
150mA
Contact Finish
Gold
Termination Style
PC Pin
Body Breadth
9.65 mm
Actuator Type
Slide (Standard)
Circuit
SPST
Contact Resistance
0.1mOhm
Insulation Resistance
1000000000Ohm
Contact Current(DC)-Max
0.15A
Max Current Rating
150mA
Dielectric Withstanding Voltage
500VAC V
Electrical Life
2,000 Cycles
Max Voltage Rating (DC)
30V
Mechanical Life
2,000 Cycles
Switch Type
SLIDE DIP SWITCH
Contact Timing
BREAK-BEFORE-MAKE
Number of Switch Sections
2
PCB Hole Count
4
Contact Function
ON-OFF
Washable
No
Actuator Level
Raised
Solderability
HAND
Washability
SOLVENT
Length
0.280 7.11mm
Actuator Length
1.27mm
Height Above Board
0.315 8.00mm
RoHS Status
Non-RoHS Compliant
Lead Free
Contains Lead
In-Stock:294805 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.03000
$0.03
500
$0.0297
$14.85
1000
$0.0294
$29.4
1500
$0.0291
$43.65
2000
$0.0288
$57.6
2500
$0.0285
$71.25
78B02 Product Details
Grayhill DIP Switches 78B02 are single-pole single-throw (SPST) switches that are designed for use in a variety of applications. They feature a low profile design and are available in a variety of configurations. The 78B02 is rated for up to 150mA at 30V and is suitable for use in a variety of applications, including industrial, automotive, and consumer electronics.
Features: - Low profile design - SPST configuration - Rated for up to 150mA at 30V - Variety of configurations available
Applications: - Industrial control systems - Automotive electronics - Consumer electronics - Test and measurement equipment - Medical devices - Lighting control systems
