Name: TB200HB-03SP
Brand: Eaton - Bussmann Electrical Division
SKU: TB200HB-03SP
Price: 6.92000 USD
Availability: InStock

new-10%

TB200HB-03SP

Manufacturer part number:TB200HB-03SP

Manufacturer:Eaton - Bussmann Electrical Division

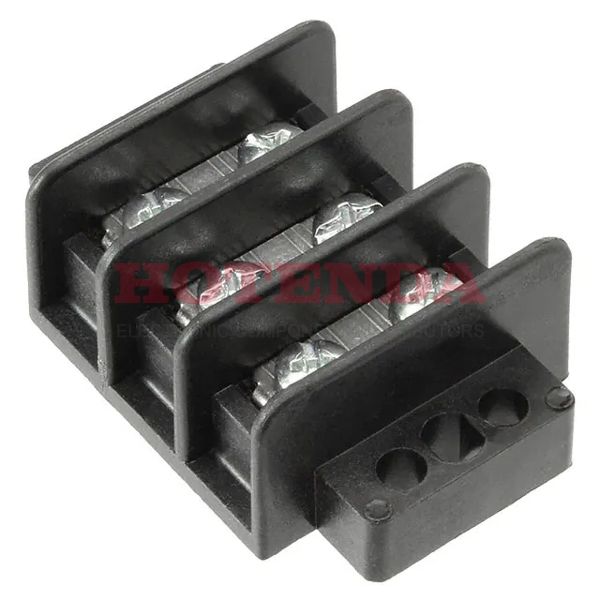

Description:Bulk 2 Rows Chassis, Panel Barrier Block Closed Magnum® TB200HB 0.437 11.10mm 2 Wall (Dual) 3 Circuits Thermoplastic

Case Package:SOT-23

Datasheet:TB200HB-03SP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Chassis, Panel
Material - Insulation	Thermoplastic
Terminal Screw Material	Steel
Operating Temperature	-40°C~130°C
Packaging	Bulk
Series	Magnum® TB200HB
Published	2011
Feature	Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Color	Black
Number of Rows	2
Voltage - Rated	600V
Current Rating (Amps)	30A
Pitch	0.437 11.10mm
Wire Gauge	12-22 AWG
Number of Circuits	3
Terminal Block Type	Barrier Block
Bottom Termination	Closed
Barrier Type	2 Wall (Dual)
Top Termination	Screws with Captive Plate
Terminal Screw Finish	Zinc
Number of Wire Entries	6
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

TB200HB-03SP Product Details

TB200HB-03SP Overview

Chassis, Panel indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Magnum® TB200HB Series.In many ways, Flange makes it more powerful.It consists of 3 circuits.Operating temperature is set to -40°C~130°C.
