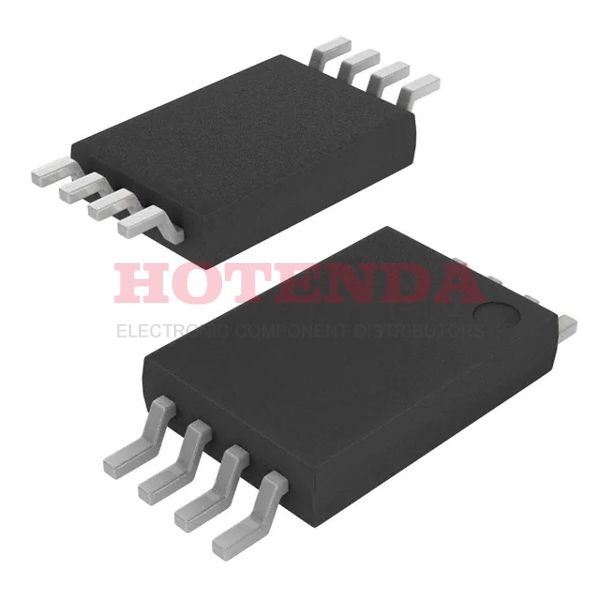

PI6C22405LEX Overview
Clock ICs are packaged using the Tape & Reel (TR) method. Clock PLL is embedded in the 8-TSSOP (0.173, 4.40mm Width) package. This clock generator receives its inputs from TTL, which is designed to be the clock source. To access the full performance of the electronic component, 1 circuits are implemented. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 220MHz. The Surface Mount allows this electrical component to be easily installed on the panel. There are 2.375V~3.6V different supply voltages that can be provided for this RF synthesizer. Statistics suggest that the ambient temperature be set at 0°C~70°C, which is what is estimated by the test. The related electrical components for the base part number PI6C22405 can be found below.
PI6C22405LEX Features
Available in the 8-TSSOP (0.173, 4.40mm Width)
PI6C22405LEX Applications
There are a lot of Diodes Incorporated PI6C22405LEX Clock Generators applications.
- Microwave backhaul IF
- Wireless infrastructure
- Integrated phase noise in aerospace systems
- Phase modulation cellular systems
- High-speed optical transport network (OTN)
- Camera systems
- Various decoding circuits
- FMCW Radar
- Tracking filters
- High-frequency induction heating
