Name: PI3C3305UEX
Brand: Diodes Incorporated
SKU: PI3C3305UEX
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Number of Pins	8
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Type	Bus Switch
Resistance	8Ohm
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Voltage - Supply	2.3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	2
Supply Voltage	3.3V
Terminal Pitch	0.65mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	3305
Operating Supply Voltage	2.5V
Number of Elements	2
Circuit	1 x 1:1
Supply Voltage-Max (Vsup)	3.63V
Number of Ports	2
Number of Bits	1
Throw Configuration	SPST
Propagation Delay	250 ps
Quiescent Current	500μA
Turn On Delay Time	9.8 ns
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Height Seated (Max)	1.1mm
Length	3mm
Width	3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PI3C3305UEX Product Details

PI3C3305UEX Overview

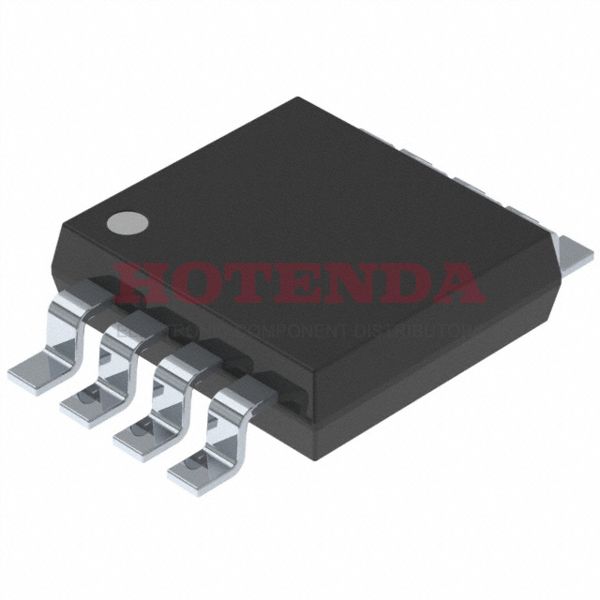

The reason it is provided is that the board space can be saved by placing digital switch in the 8-TSSOP, 8-MSOP (0.118, 3.00mm Width).In this case, it is packaged as Tape & Reel (TR).Mounting is performed using Surface Mount.The analog IC used in the multiplexers can be referred to as Bus Switch.The operating temperature of -40°C~85°C will not be susceptible to external factors.Using a 2.3V~3.6V supply voltage provides digital controlled switch's superior flexibility for designers.Among its basic features are 8 terminations.The base part number is 3305, which is also useful when looking up signal switch's related components.The multiplexer's system is powered by 3.3V volts.At the end of a conductor, it uses GULL WING as the point where the conductor ends.There is a type of supply of Single.Currently, it is configured with a 8 pin configuration.It is positioned in the direction of Surface Mount.As a result, signal multiplexer provides 1 bits.To avoid unnecessary failures, the maximum supply voltage (Vsup) should be kept at 3.63V.The digital switch ic is an electronic part classified into Bus Driver/Transceivers.Despite not interacting with external factors, it consumes 500μA current of multiplexer ic.It is possible to achieve reliable performance of the multiplexers with a voltage supply of 2.5V.The resistance of the signal switching is 2.A resistance of 8Ohm is used to operate the signal switching.The mux switch configuration consists of 2 elements.
