MMBZ5252BW-7

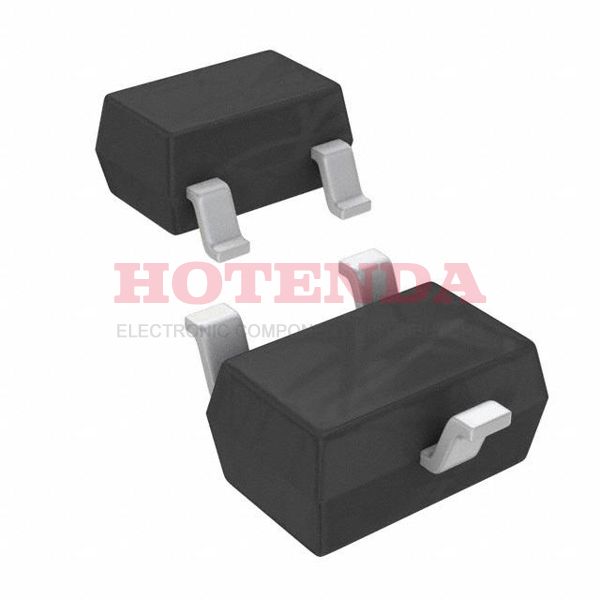

  • MMBZ5252BW-7 - ZENER DIODE 5% 24V 200mW 3 Terminations SOT-323
  • MMBZ5252BW-7 - ZENER DIODE 5% 24V 200mW 3 Terminations SOT-323

MMBZ5252BW-7

MMBZ5252BW-7

Diodes Incorporated

ZENER DIODE 5% 24V 200mW 3 Terminations SOT-323

SOT-23

MMBZ5252BW-7 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Package / Case SOT-323
Number of Pins 3
Weight 6.010099mg
Diode Element Material SILICON
PackagingTape & Reel (TR)
Published 2006
Tolerance 5%
JESD-609 Code e0
Pbfree Code no
Part StatusDiscontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish TIN LEAD
Max Operating Temperature150°C
Min Operating Temperature -65°C
HTS Code8541.10.00.50
Power Rating 200mW
Voltage - Rated DC 24V
Max Power Dissipation200mW
Terminal Position DUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel) 235
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 10
Pin Count3
Qualification StatusNot Qualified
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance33Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Power Dissipation200mW
Test Current 5.2mA
Reference Voltage24V
Zener Voltage 24V
Voltage Tol-Max 5%
Peak Reverse Current100nA
Voltage Tolerance5%
Zener Current5.2mA
Height 1mm
Length 2.2mm
Width 1.35mm
RoHS StatusROHS3 Compliant
Lead Free Contains Lead
In-Stock:19008 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.370000$0.37
10$0.349057$3.49057
100$0.329299$32.9299
500$0.310659$155.3295
1000$0.293075$293.075

MMBZ5252BW-7 Product Details

MMBZ5252BW-7 Overview


Voltage (Tol) is limited to 5%.The design is highly flexible due to the zener current of 5.2mA.This device functions best with a peak reverse voltage of 100nA.

MMBZ5252BW-7 Features


the zener current of 5.2mA


MMBZ5252BW-7 Applications


There are a lot of Diodes Incorporated
MMBZ5252BW-7 applications of zener single diodes.
