Name: BZX84C7V5T-7-F
Brand: Diodes Incorporated
SKU: BZX84C7V5T-7-F
Price: 0.07000 USD
Availability: InStock

new-10%

BZX84C7V5T-7-F

Manufacturer part number:BZX84C7V5T-7-F

Manufacturer:Diodes Incorporated

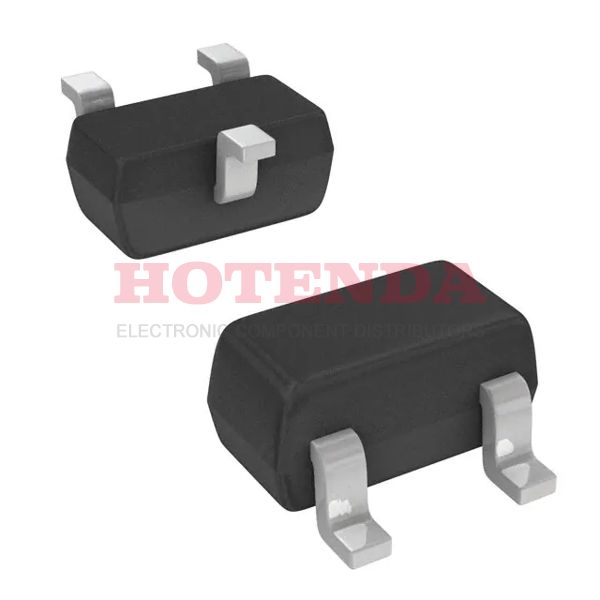

Description:ZENER DIODE 15Ohm ±6% 7.5V 1μA @ 5V -65°C~150°C 150mW 3 Terminations SOT-523

Case Package:SOT-23

Datasheet:BZX84C7V5T-7-F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-523
Number of Pins	3
Weight	2.012816mg
Diode Element Material	SILICON
Operating Temperature	-65°C~150°C
Packaging	Tape & Reel (TR)
Published	2007
Tolerance	±6%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
HTS Code	8541.10.00.50
Power Rating	150mW
Max Power Dissipation	150mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	BZX84C7V5
Pin Count	3
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	15Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	1μA @ 5V
Power Dissipation	150mW
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Max Reverse Leakage Current	1μA
Impedance-Max	15Ohm
Test Current	5mA
Reference Voltage	7.5V
Zener Voltage	7.5V
Voltage Tol-Max	6.04%
Peak Reverse Current	1μA
Voltage Tolerance	6%
ESD Protection	No
Height	750μm
Length	1.6mm
Width	800μm
RoHS Status	ROHS3 Compliant

BZX84C7V5T-7-F Product Details

BZX84C7V5T-7-F Overview

A reverse leakage current of 1μA @ 5V is required to supply this electrical device.Voltage (Tol) is limited to 6.04%.1μA is the maximum reverse leakage current.900mV @ 10mA is reached when the maximum voltage - Forward (Vf) is supplied for its operation.This device functions best with a peak reverse voltage of 1μA.
