AZ1117ID-3.3TRG1 Overview

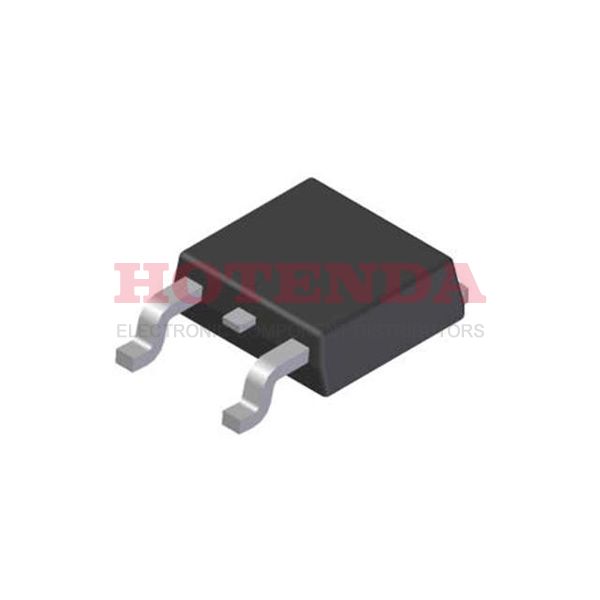

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-252-3, DPak (2 Leads + Tab), SC-63 case is used for packaging. As you can see, the IC chip has 2 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C TJ degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. The dropout voltage of the regulator IC is 10 volts. Among the AZ1117I Series, the IC voltage regulator is one of the most popular models.
AZ1117ID-3.3TRG1 Features
1.3V dropout voltage
AZ1117ID-3.3TRG1 Applications
There are a lot of Diodes Incorporated
AZ1117ID-3.3TRG1 Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
