Name: AUR9716AGD
Brand: Diodes Incorporated
SKU: AUR9716AGD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount

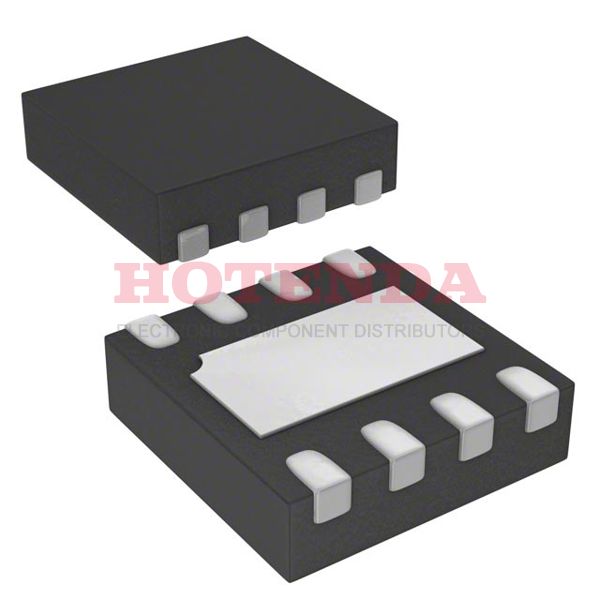

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-DFN (3x3)
Operating Temperature	-40°C~80°C TA
Packaging	Tape & Reel (TR)
Published	2012
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	80°C
Min Operating Temperature	-40°C
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Type	Adjustable
Voltage - Input (Min)	2.5V
Output Configuration	Positive
Current - Output	2A
Max Output Voltage	5.5V
Voltage - Output (Min/Fixed)	0.8V
Topology	Buck
Min Input Voltage	2.5V
Frequency - Switching	1MHz~1.4MHz
Max Input Voltage	5.5V
Synchronous Rectifier	Yes
Min Output Voltage	800mV
Voltage - Output (Max)	5.5V
RoHS Status	ROHS3 Compliant

AUR9716AGD Product Details

AUR9716AGD Overview

A Tape & Reel (TR) package is used in this voltage regulator to optimize performance. In order to save space, this voltage regulator is packaged in the 8-WDFN Exposed Pad package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~80°C TA is essential when operating. A DC-DC switching regulator such as this one switches at 1MHz~1.4MHz. Voltage regulators like this one can operate at least with 2.5V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.8V. This voltage regulator 12v features maximum design flexibility thanks to its 2A output current. As far as the voltage input is concerned, DC DC switching regulator can accept up to 5.5V. Ideally this switch regulator should have an output voltage of about 800mV at the very least. The maximal output voltage of 5.5V allows adjusting voltage regulator for simple operation. DC DC switching regulator offers a maximum output voltage of 5.5V as its maximum output voltage. Operating at the high-limit maximum operating temperature 80°C makes the voltage regulator stable. To ensure reliability, the voltage regulator 12v operates at a minimum operating temperature of -40°C. An input voltage of 2.5V is the minimum voltage that it supports. At its maximum voltage, this DC-DC switching regulator is designed to sustain a 5.5V input voltage.
