Name: CY9BF412NBGL-GE1
Brand: Cypress Semiconductor Corp
SKU: CY9BF412NBGL-GE1
Availability: InStock

new-10%

CY9BF412NBGL-GE1

Manufacturer part number:CY9BF412NBGL-GE1

Manufacturer:Cypress Semiconductor Corp

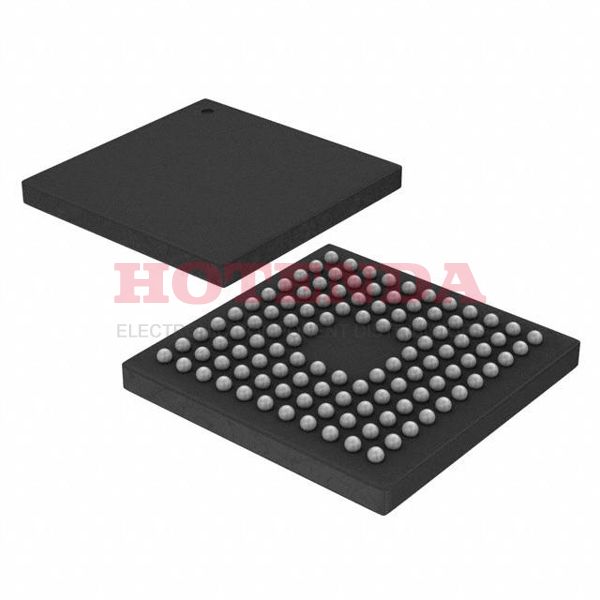

Description:160KB 160K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller FM3 MB9B410R Series 112-LFBGA

Case Package:SOT-23

Datasheet:CY9BF412NBGL-GE1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Mounting Type	Surface Mount
Package / Case	112-LFBGA
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	FM3 MB9B410R
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	112
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.8mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	S-PBGA-B112
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.7V
Oscillator Type	Internal
Number of I/O	83
Speed	144MHz
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M3
Peripherals	DMA, LVD, POR, PWM, WDT
Clock Frequency	48MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	160KB 160K x 8
Connectivity	CANbus, CSIO, EBI/EMI, I2C, LINbus, UART/USART
Bit Size	32
Data Converter	A/D 16x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Address Bus Width	25
On Chip Program ROM Width	8
External Data Bus Width	16
Length	10mm
Height Seated (Max)	1.45mm
Width	10mm
RoHS Status	ROHS3 Compliant

CY9BF412NBGL-GE1 Product Details

CY9BF412NBGL-GE1 Overview

112-LFBGA-packages are available. There are 83 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the FM3 MB9B410R series. This program memory has a size of 160KB 160K x 8, which indicates what the size of the program memory is. ARM® Cortex®-M3 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 112 terminations on MCU chip. You get a 32-bit size. There are YES DMA channels on this Microcontroller chip. Using the PWM channel YES, the device works with the motor. It's got a 48MHz clock.
