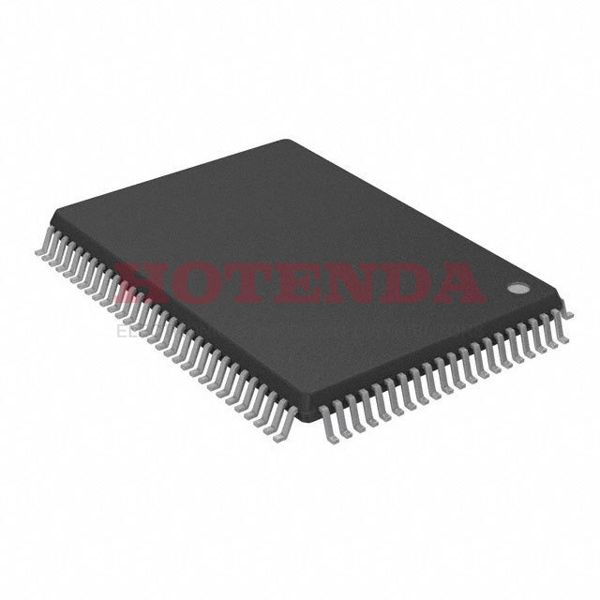

Name: CY90F548GPFR-GE1
Brand: Cypress Semiconductor Corp
SKU: CY90F548GPFR-GE1
Availability: InStock

new-10%

CY90F548GPFR-GE1

Manufacturer part number:CY90F548GPFR-GE1

Manufacturer:Cypress Semiconductor Corp

Description:Microcontroller 5V

Case Package:SOT-23

Datasheet:CY90F548GPFR-GE1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Part Status	Active
Number of Terminations	100
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	5V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PQFP-G100
Operating Temperature (Max)	105°C
Operating Temperature (Min)	-40°C
Supply Voltage-Max (Vsup)	5.5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	3.5V
Number of I/O	81
Speed	16 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	16MHz
Bit Size	16
Has ADC	YES
DMA Channels	NO
PWM Channels	NO
DAC Channels	NO
Address Bus Width	24
ROM (words)	131072
On Chip Program ROM Width	8
External Data Bus Width	16
RAM (bytes)	4096
ROM Programmability	FLASH
Length	20mm
Height Seated (Max)	3.35mm
Width	14mm
RoHS Status	RoHS Compliant

CY90F548GPFR-GE1 Product Details

CY90F548GPFR-GE1 Overview

This Microcontroller has 81 I/Os. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 100 terminals. Microcontroller comes with 16 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The device works in NO PWM channels. It is at 16MHz clock frequency.
