CY29973AIT Overview

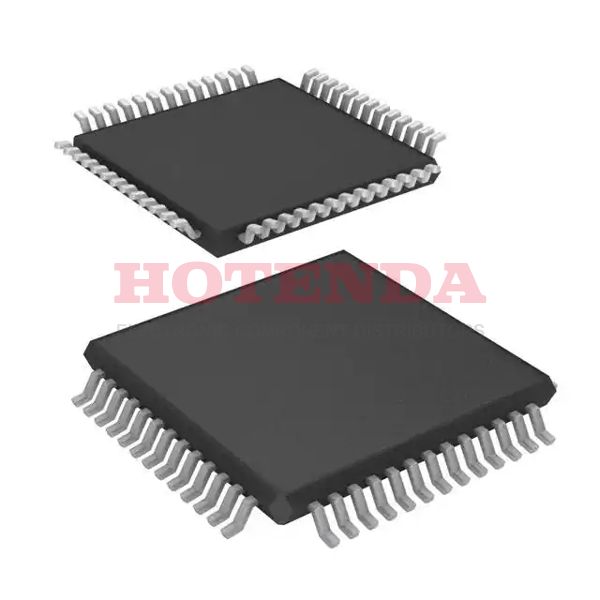

As a clock IC, it is packaged by the Tape & Reel (TR) method. The 52-TQFP package includes this clock generator. The peak reflow temperature (Cel) amounts to 235 to be essentially indestructible. There are a total of 52 terminations in this file. To operate this time clock generator, 3.3V voltage should be applied. There is a Clock PLL called PECL which is designed to be the input to this clock generator. Using 1 circuits, the electronic part's full performance can be accessed. An upper frequency limit of 125MHz Max can be achieved with this clock-based frequency synthesizer. PLL clock is mounted in the way of Surface Mount. There is a maximum voltage of 3.63V for this clock generator. The supply voltage (Vsup) should be kept above 2.97V for normal operation. There should be 2.9V~3.6V provided with this RF synthesizer. The temperature should be set at -40°C~85°C to ensure reliable performance. It's compatible with Clock logic levels. This is an electronic part that can be classified as a Fanout Distribution, Multiplexer, Spread Spectrum Clock Generator, Zero Delay Buffer in this case. An IC that generates clocks specifically for microprocessors, this clock PLL is 52-bits in si52e. This part number CY29973 is related to the following electrical components. PLL is designed with 52 pins. RF synthesizers can handle a voltage of 3.3V as the supply voltage. There is a low timing skew at 0.35 nsmax with this RF synthesizer.
CY29973AIT Features
Available in the 52-TQFP
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CY29973AIT Applications
There are a lot of Cypress Semiconductor Corp CY29973AIT Clock Generators applications.
- Local oscillators (LOs)
- Wide area power system
- Fiber Channel
- Multiplexing communication
- Vector network analyzers (VNA)
- VSAT (Small Ground Satellite Station)
- Reference signals to RF systems
- Tracking filters
- FMCW Radar
- Digital switching systems
