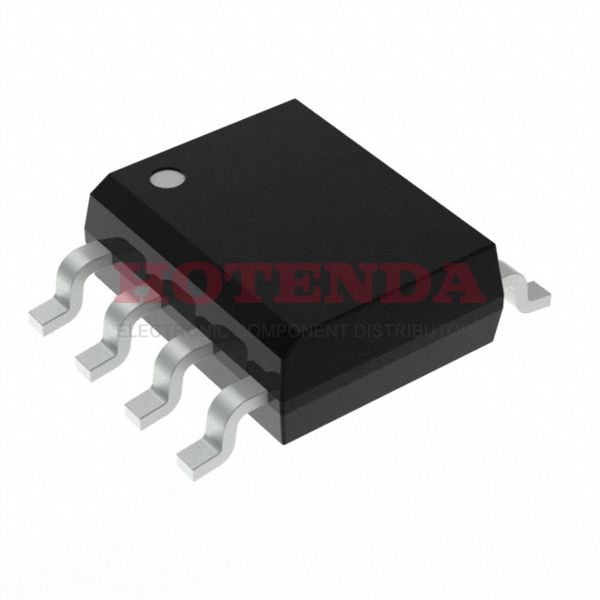

CY22381SXI-292T Overview
As a clock IC, PLLs is packaged using the Tape & Reel (TR) method. The 8-SOIC (0.154, 3.90mm Width) package embeds this Clock PLL. LVTTL, Crystal is designed for clock generator's input. An implementation of 3 circuits is required in order to fully utili3e the capabilities of the electrical part. The Surface Mount allows the electrical component to be installed conveniently on the panel. Clock PLL works with 3.135V~3.465V supply voltage provided. Using the test statistics, we estimate that the ambient temperature should be -40°C~85°C TA. A frequency synthesizer which is compatible with the CMOS logic levels is presented here. A Clock Generator, Fanout Distribution is a classification for the electronic part in question. It is possible to find its related electronic parts by searching for the base part number CY22381.
CY22381SXI-292T Features
Available in the 8-SOIC (0.154, 3.90mm Width)
CY22381SXI-292T Applications
There are a lot of Cypress Semiconductor Corp CY22381SXI-292T Clock Generators applications.
- FM demodulation networks for FM operations
- FMCW Radar
- Ultrasound diagnosis
- Pulsed digital systems
- Melting
- Medical equipment
- Jitter reduction
- MRI
- Communication infrastructure
- Ports
