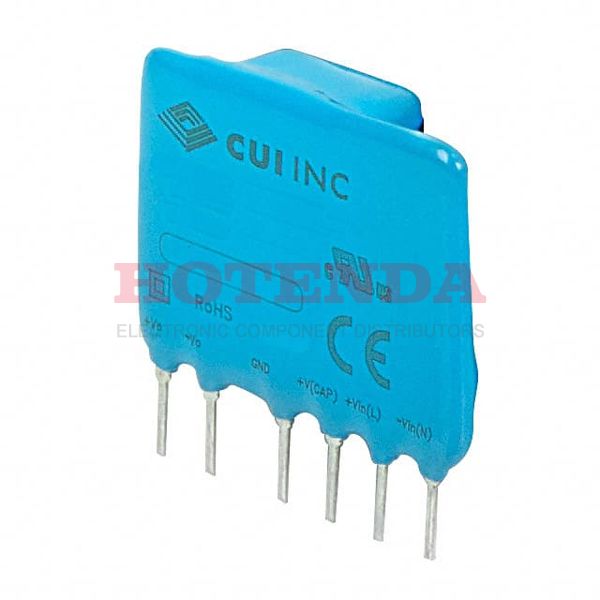

PBK-3-24 datasheet pdf and AC DC Converters product details from CUI Inc. stock available on our website
SOT-23
PBK-3-24 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
12-SIP Module, 6 Leads
Weight
0.018lb 8.16g
Operating Temperature
-40°C~85°C With Derating
Published
2014
Series
PBK-3 (3W)
Size / Dimension
1.38Lx0.43W x 1.06 H 35.0mmx11.0mmx27.0mm
Feature
OCP, SCP
Pbfree Code
yes
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
6
ECCN Code
EAR99
Type
Enclosed
Applications
ITE (Commercial)
Subcategory
Power Supply Modules
Max Power Dissipation
3W
Technology
HYBRID
Terminal Position
SINGLE
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Number of Functions
1
Terminal Pitch
2.54mm
Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-XSMA-T6
Number of Outputs
1
Approval Agency
CE, cULus
Efficiency
78%
Output Voltage
24V
Max Output Current
125mA
Voltage - Output 1
24V
Input Voltage-Nom
115V
Trim/Adjustable Output
NO
Voltage - Input
85V~264VAC
Output Power
3W
Protections
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Total Power Output-Max
3W
Line Regulation
±1.5%
Load Regulation
±2.5%
Ripple Voltage (Main Out)
0.04242Vrms
Height
26.924mm
Length
35mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:713 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$11.04000
$11.04
5
$10.88400
$54.42
10
$10.72700
$107.27
25
$10.09600
$252.4
PBK-3-24 Product Details
The CUI AC DC Converters PBK-3-24 is a reliable and efficient AC/DC converter that provides a regulated 24V DC output from a universal 85-264V AC input. This converter is designed to be used in a wide range of applications, including industrial, commercial, and residential applications.
Features of the CUI AC DC Converters PBK-3-24 include: - Universal 85-264V AC input voltage range - Regulated 24V DC output voltage - 3W output power - High efficiency up to 85% - Low no-load power consumption - Over-voltage, over-current, and short-circuit protection - UL/cUL, CE, and CB safety approvals
The CUI AC DC Converters PBK-3-24 is suitable for a variety of applications, including: - Industrial automation - Building automation - Security systems - LED lighting - Telecommunications - Medical equipment - Home appliances - Office equipment
