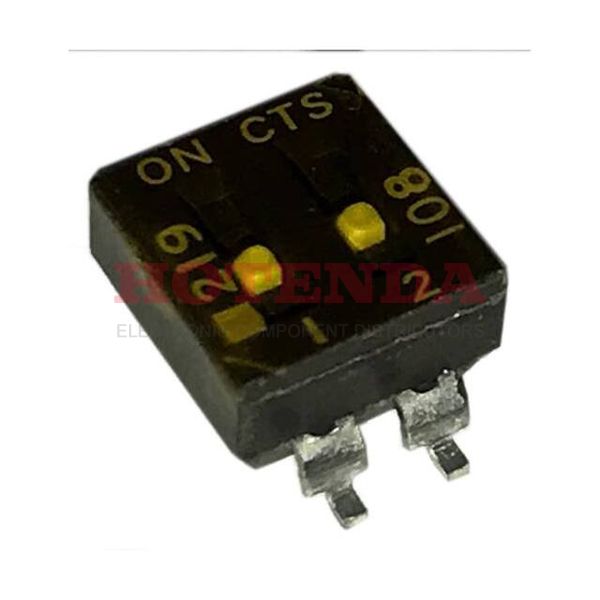

Switch DIP OFF ON SPST 2 Extended Slide 0.1A 20VDC Gull Wing SMD T/R
SOT-23
219-2LPSTRF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
8 Weeks
Contact Material
Beryllium Copper
Mounting Type
Surface Mount
Surface Mount
NO
Operating Temperature
-55°C~85°C
Packaging
Tape & Reel (TR)
Published
2008
Series
219
JESD-609 Code
e3
Feature
Epoxy Sealed Terminals, Tape Seal
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN Code
EAR99
Number of Positions
2
Terminal Finish
Tin (Sn)
Voltage - Rated
20VDC
HTS Code
8536.50.90.65
Current Rating (Amps)
100mA
Pitch
0.100 2.54mm Full
Packing Method
TAPE AND REEL
Contact Finish
Gold
Termination Style
Gull Wing
Body Breadth
6.55 mm
Actuator Type
Slide (Standard)
Circuit
SPST
Contact Current(DC)-Max
0.1A
Sealing
BOTTOM SEALED; TOP TAPE SEALED
Electrical Life
2,000 Cycles
Switch Type
SLIDE DIP SWITCH
Number of Switch Sections
2
Washable
Yes
Actuator Level
Flush, Recessed
Length
0.258 6.55mm
Body Height
3.8mm
Height Above Board
0.160 4.06mm
RoHS Status
RoHS Compliant
In-Stock:16829 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.621220
$0.62122
10
$0.586057
$5.86057
100
$0.552884
$55.2884
500
$0.521588
$260.794
1000
$0.492064
$492.064
219-2LPSTRF Product Details
Description: CTS Components DIP Switches 219-2LPSTRF are single-pole single-throw (SPST) switches with extended slide actuators. They are designed for surface mount technology (SMT) and have a maximum current rating of 0.1A and a maximum voltage rating of 20VDC. The switches feature gull wing leads for easy soldering.
Features: * SPST switch with extended slide actuator * Designed for surface mount technology (SMT) * Maximum current rating of 0.1A * Maximum voltage rating of 20VDC * Gull wing leads for easy soldering
Applications:
CTS Components DIP Switches 219-2LPSTRF are suitable for a variety of applications, including consumer electronics, automotive, industrial, and medical. They can be used for switching power, controlling signals, and providing on/off control.
