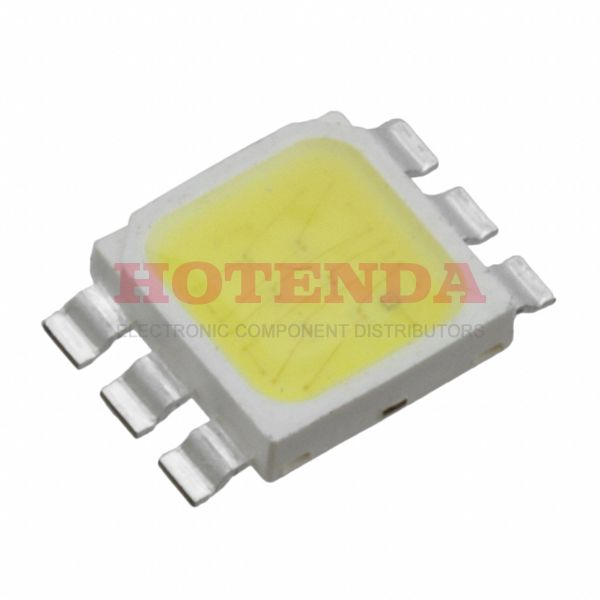

CLN6A-WKW-CK0L0343

CLN6A-WKW-CK0L0343

CLN6A-WKW-CK0L0343

Cree Inc.

LED CLN6A COOL WHT 7000K SMD

SOT-23

CLN6A-WKW-CK0L0343 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, Gull Wing Exposed Pad
Number of Pins 6
Shape RECTANGULAR
Thermal Resistance of Package 15°C/W
PackagingTape & Reel (TR)
Series CLN6A-WKW/MKW
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
Max Operating Temperature90°C
Min Operating Temperature -40°C
Color White, Cool
Packing Method TAPE AND REEL
Max Power Dissipation1.2W
Number of Functions 1
Depth 5mm
Base Part Number CLN6A
Number of Elements 1
Configuration SINGLE WITH BUILT-IN RESISTOR
Max Current Rating 350mA
Power Dissipation1.2W
Voltage - Forward (Vf) (Typ) 3.8V
Viewing Angle115°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current350mA
Current - Test 300mA
Lens Style Diffused, Flat, Square
Lumens/Watt @ Current - Test 76 lm/W
CCT (K) 7000K (6000K ~ 8000K)
Luminous Intensity101.8 mcd
Illumination Color White
Luminous Flux101.8 lm
Reverse Voltage5V
Flux @ 25°C, Current - Test 87lm 72lm~102lm
Color Rendering Index (CRI) 72
Height 1.3mm
Height Seated (Max) 0.053 1.35mm
REACH SVHC Unknown
RoHS StatusRoHS Compliant
In-Stock:1733 items

About CLN6A-WKW-CK0L0343

The CLN6A-WKW-CK0L0343 from Cree Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED CLN6A COOL WHT 7000K SMD.

Key Features

  • Advanced AVR architecture for efficient processing
  • Wide operating temperature range: -40°C to 85°C
  • Low power consumption for energy-efficient applications
  • Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

  • Industrial control systems
  • Consumer electronics
  • Automotive systems
  • IoT devices
  • Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the CLN6A-WKW-CK0L0343, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
