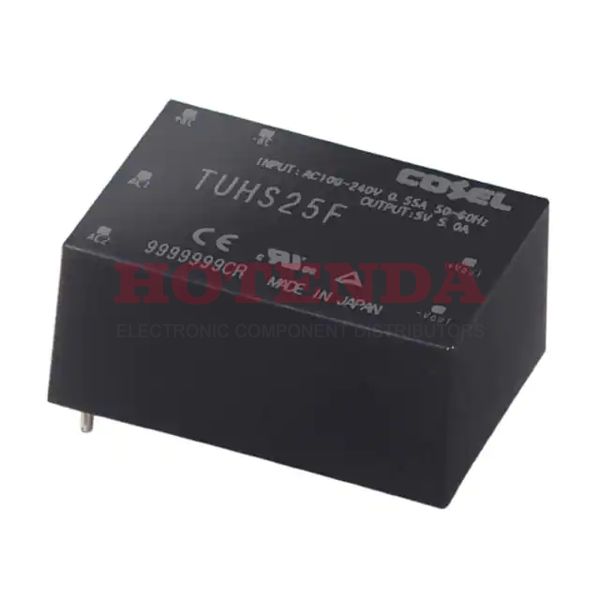

TUHS25F12 datasheet pdf and AC DC Converters product details from Cosel USA, Inc. stock available on our website
SOT-23
TUHS25F12 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
6 Weeks
Mounting Type
Through Hole
Package / Case
6-DIP Module
Surface Mount
NO
Weight
40g
Operating Temperature
-40°C~85°C With Derating
Series
TUH (25W)
Published
2014
Size / Dimension
1.42Lx1.00W x 0.65 H 36.1mmx25.4mmx16.5mm
Feature
Universal Input
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Number of Terminations
6
ECCN Code
EAR99
Type
Enclosed
Applications
ITE (Commercial)
Power (Watts)
25W
Power Rating
25.2W
Technology
HYBRID
Terminal Position
UNSPECIFIED
Terminal Form
PIN/PEG
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Number of Functions
1
Depth
16.5mm
Reach Compliance Code
unknown
Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-XXMA-P6
Number of Outputs
1
Approval Agency
CE, cURus
Efficiency
88%
Output Voltage
12V
Input Voltage-Nom
100V
Trim/Adjustable Output
NO
Voltage - Input
85V~264VAC 120V~370VDC
Output Current
2.1A
Output Power
25.2W
Current - Output 1
2.1A
Isolation Voltage
3kV
Line Regulation
48mV
Load Regulation
100mV
Height
16.51mm
Length
36mm
Width
25.4mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:275 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$29.87000
$29.87
5
$28.99000
$144.95
10
$28.11200
$281.12
25
$27.23360
$680.84
50
$26.35500
$1317.75
100
$25.47650
$2547.65
250
$24.59800
$6149.5
TUHS25F12 Product Details
The Cosel AC DC Converter TUHS25F12 is a high-performance AC/DC converter designed to provide reliable and efficient power conversion. It features a wide input voltage range of 85-264VAC and a single output voltage of 12V DC with a maximum output power of 25W. This converter is ideal for a variety of applications, including industrial, medical, and consumer electronics.
Features of the Cosel AC DC Converter TUHS25F12 include:
• Wide input voltage range of 85-264VAC • Single output voltage of 12V DC • Maximum output power of 25W • High efficiency up to 85% • Low no-load power consumption • Over-voltage, over-current, and short-circuit protection • Low EMI and low ripple noise • Compact size and lightweight design
Applications of the Cosel AC DC Converter TUHS25F12 include:
• Industrial equipment • Medical equipment • Consumer electronics • Telecommunications • Automotive • Security systems • Lighting systems • Test and measurement equipment
