MS3452L16S-1PZ

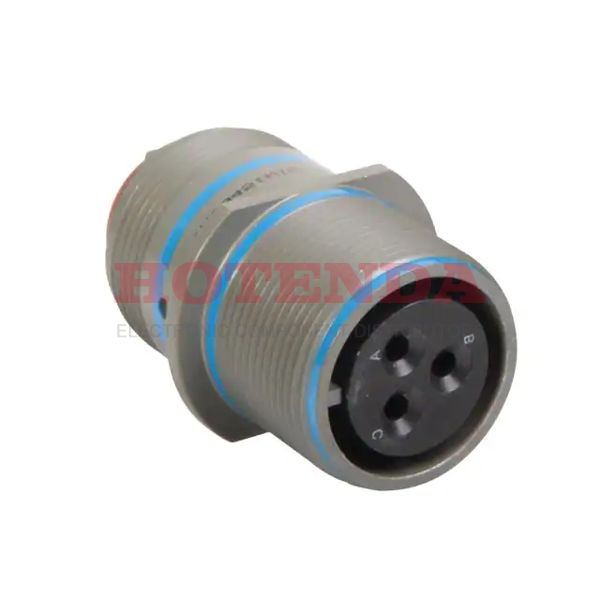

  • MS3452L16S-1PZ - Aluminum
  • MS3452L16S-1PZ - Aluminum

MS3452L16S-1PZ

MS3452L16S-1PZ

Corsair Electrical Connectors

Aluminum

SOT-23

MS3452L16S-1PZ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Contact MaterialCopper Alloy
Contact PlatingGold
Shell Material Aluminum
Number of Terminals 7
ECCN (US) EAR99
Military Standard Series Series III
Mounting Box Mount
Body Orientation Straight
Termination Method Crimp
Shell Size / Insert Arrangement 16S-1
Less Contact No
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 200
Mating Style Threaded
Mating Cycle (Cycles) 500
Product Depth (mm) 32.53
Part StatusActive
Type Circular
Gender RCP
Military Standard MIL-DTL-5015
Number of Contacts 7
Contact Gender PIN
Polarization Z
Number of Ports1
Wire Size (AWG) 16-20
Shell PlatingElectroless Nickel
Product Length (mm) 42.21
Product Height (mm) 32.53
RoHS StatusRoHS Compliant
In-Stock:189 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$44.97000$44.97
500$44.5203$22260.15
1000$44.0706$44070.6
1500$43.6209$65431.35
2000$43.1712$86342.4
2500$42.7215$106803.75

MS3452L16S-1PZ Product Details

MS3452L16S-1PZ Overview




MS3452L16S-1PZ Features




MS3452L16S-1PZ Applications


There are a lot of Corsair Electrical Connectors
MS3452L16S-1PZ Circular Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
