WMF1D5K-F

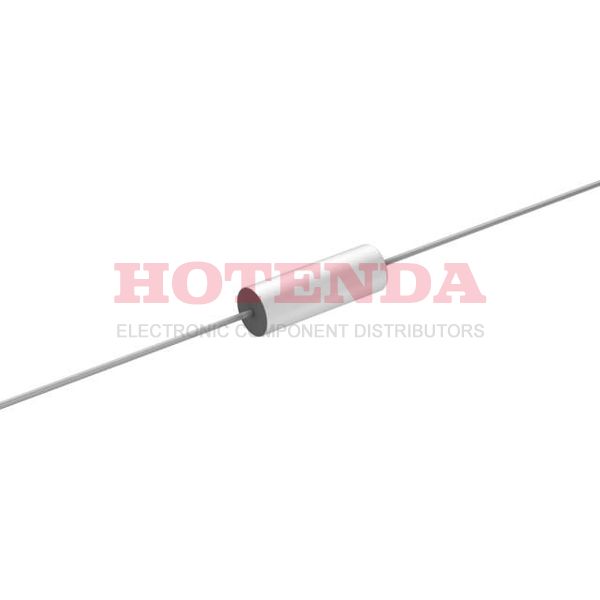

  • WMF1D5K-F - WMF 5000pF Film Capacitor ±10% Axial PC Pins 100V-DC 65V-AC Polyester Through Hole
  • WMF1D5K-F - WMF 5000pF Film Capacitor ±10% Axial PC Pins 100V-DC 65V-AC Polyester Through Hole

WMF1D5K-F

WMF1D5K-F

Cornell Dubilier Electronics (CDE)

WMF 5000pF Film Capacitor ±10% Axial PC Pins 100V-DC 65V-AC Polyester Through Hole

SOT-23

WMF1D5K-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Dielectric MaterialPolyester
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series WMF
Size / Dimension 0.189Diax0.563L 4.80mmx14.30mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 65
HTS Code8532.25.00.60
Capacitance 5000pF
Voltage - Rated DC 100V
Voltage - Rated AC 65V
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Diameter 500 μm
Life (Hours) 500 hours
Dissipation Factor0.75 %
Length 14.3mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:2977 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.992021$1.992021
10$1.879265$18.79265
100$1.772892$177.2892
500$1.672540$836.27
1000$1.577867$1577.867

WMF1D5K-F Product Details

WMF1D5K-F Overview


In a temperature range of -55°C~125°C, the device can be operated.

WMF1D5K-F Features



WMF1D5K-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) WMF1D5K-F applications of film capacitors.

  • Bypassing
  • Compact fluorescent lamps (CFL)
  • RF Modules
  • Battery management system
  • Filtering
  • Mobile communications
  • Test and measuring equipment
  • Satellite TV
  • Blocking
  • TV and monitor sets
