WMF05P22K

  • WMF05P22K - WMF 0.22μF Film Capacitor ±10% Axial PC Pins 50V-DC 35V-AC Polyester Through Hole
  • WMF05P22K - WMF 0.22μF Film Capacitor ±10% Axial PC Pins 50V-DC 35V-AC Polyester Through Hole

WMF05P22K

WMF05P22K

Cornell Dubilier Electronics (CDE)

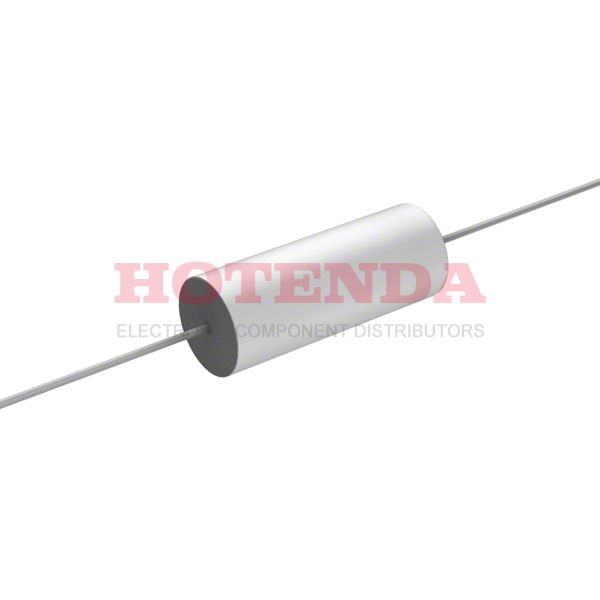

WMF 0.22μF Film Capacitor ±10% Axial PC Pins 50V-DC 35V-AC Polyester Through Hole

SOT-23

WMF05P22K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Dielectric MaterialPolyester
Operating Temperature-55°C~125°C
PackagingBulk
Published 2006
Series WMF
Size / Dimension 0.358Diax0.811L 9.10mmx20.60mm
Tolerance ±10%
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 35
HTS Code8532.25.00.60
Capacitance 0.22μF
Voltage - Rated DC 50V
Reach Compliance Code unknown
Voltage - Rated AC 35V
Capacitor Type FILM CAPACITOR
Lead Diameter 600 μm
Life (Hours) 500 hours
Custom Capabilities Tape and Reel Packaging
Diameter 9.1mm
RoHS StatusNon-RoHS Compliant
In-Stock:1578 items

WMF05P22K Product Details

WMF05P22K Overview


Temperatures of -55°C~125°C allow the device to operate.

WMF05P22K Features



WMF05P22K Applications


There are a lot of Cornell Dubilier Electronics (CDE) WMF05P22K applications of film capacitors.

  • Battery management system
  • Blocking
  • Test and measuring equipment
  • RFI for automotive
  • Bypassing
  • Switch-mode power supplies
  • Filtering
  • VCO's
  • Satellite TV
  • Mobile communications
