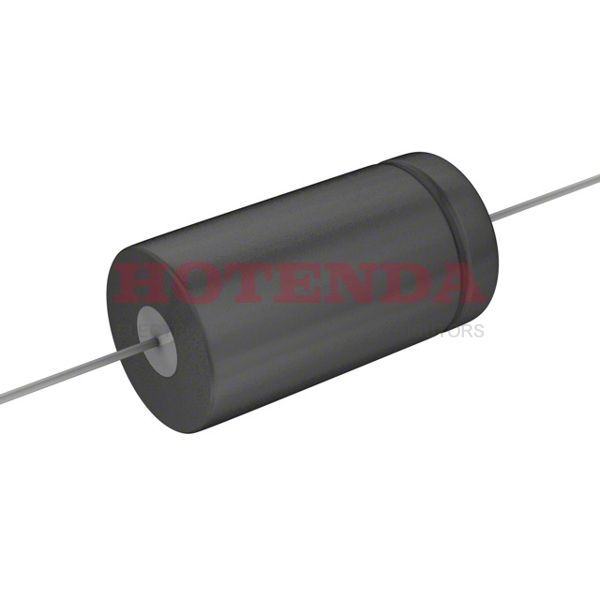

TC75

new-10%

Manufacturer part number:TC75

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:Aluminum Electrolytic Capacitors - Leaded AXIAL 450V 20UF

Case Package:SOT-23

Datasheet:TC75 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Mount	PCB, Through Hole
Mounting Type	Through Hole
Package / Case	Axial, Can
Dielectric Material	Aluminium
Operating Temperature	-40°C~85°C
Packaging	Bulk
Series	TC
Size / Dimension	0.875Diax1.625L 22.22mmx41.28mm
Tolerance	-10% +50%
Feature	General Purpose
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Axial
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Applications	General Purpose
Voltage - Rated	450V
Capacitance	20μF
Voltage - Rated DC	450V
Lead Length	57.1mm
ESR (Equivalent Series Resistance)	8.71Ohm
Lead Diameter	1.02 mm
Lifetime @ Temp	1000 Hrs @ 85°C
Ripple Current	371mA
Life (Hours)	1000 hours
Diameter	22.23mm
Height	41.28mm
Length	41.275mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
