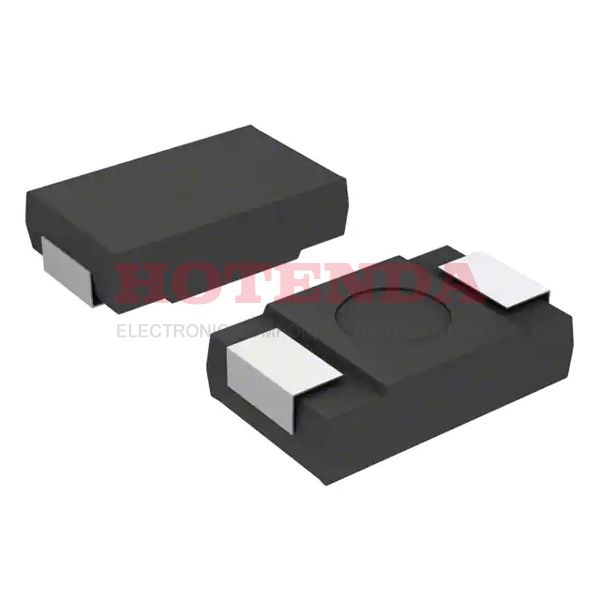

Name: SPSX391M0ER-6
Brand: Cornell Dubilier Electronics (CDE)
SKU: SPSX391M0ER-6
Availability: InStock

new-10%

SPSX391M0ER-6

Manufacturer part number:SPSX391M0ER-6

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:390μF ±20% 2917 (7343 Metric) 0.083 2.10mm Tape & Reel (TR) 6mOhm SPSX Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:SPSX391M0ER-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Dielectric Material	ALUMINUM (DRY/SOLID)
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Series	SPSX
Published	2013
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymer
Applications	General Purpose
Capacitance	390μF
Voltage - Rated DC	2.5V
Packing Method	TR
Reach Compliance Code	unknown
ESR (Equivalent Series Resistance)	6mOhm
Polarity	POLARIZED
Lifetime @ Temp	1000 Hrs @ 105°C
Ripple Current	3.5A
Life (Hours)	1000 hours
Ripple Current @ High Frequency	3.5A @ 100kHz
Height Seated (Max)	0.083 2.10mm
Length	7.3mm
Width	4.3mm
RoHS Status	ROHS3 Compliant

SPSX391M0ER-6 Product Details

SPSX391M0ER-6 Overview

It is necessary to have a ripple current at high frequency of 3.5A @ 100kHz to power systems.The device has an ESR of 6mOhm.A stable operating temperature is -40°C~105°C.

SPSX391M0ER-6 Features

3.5A @ 100kHz ripple current on a high frequency
a 6mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -40°C~105°C
