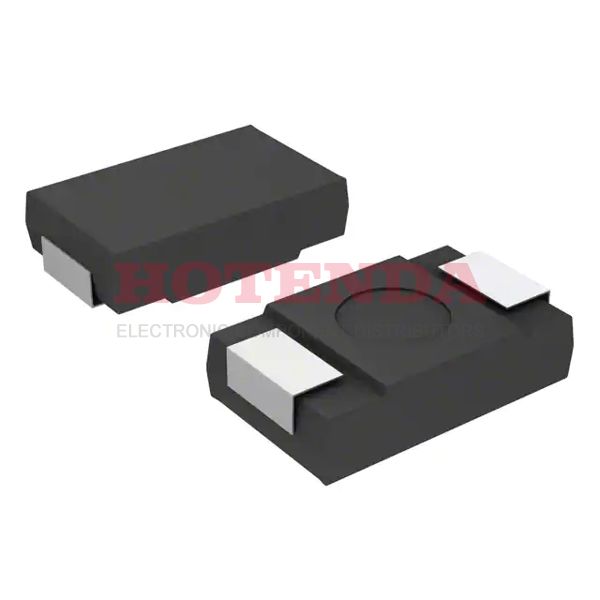

Name: SPSX271M02R
Brand: Cornell Dubilier Electronics (CDE)
SKU: SPSX271M02R
Availability: InStock

new-10%

SPSX271M02R

Manufacturer part number:SPSX271M02R

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:270μF ±20% 2917 (7343 Metric) 0.083 2.10mm Tape & Reel (TR) 9mOhm SPSX Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:SPSX271M02R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	J BEND
Surface Mount Land Size	0.287Lx0.169W 7.30mmx4.30mm
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Series	SPSX
Published	2013
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Tin (Sn)
Applications	General Purpose
HTS Code	8532.29.00.40
Capacitance	270μF
Voltage - Rated DC	2V
Packing Method	TR
ESR (Equivalent Series Resistance)	9mOhm
Polarity	POLARIZED
Rated (DC) Voltage (URdc)	2V
Lifetime @ Temp	1000 Hrs @ 105°C
Leakage Current	0.054mA
Ripple Current	3A
Life (Hours)	1000 hours
Tan Delta	0.06
Ripple Current @ High Frequency	3A @ 100kHz
Height Seated (Max)	0.083 2.10mm
Length	7.3mm
Width	4.3mm
RoHS Status	ROHS3 Compliant

SPSX271M02R Product Details

SPSX271M02R Overview

Systems need 3A @ 100kHz ripple current at high frequency to be powered.In this electrical device, the ESR (Equivalent Series Resistance) is 9mOhm.Upon operation, the rated (DC) voltage (URdc) must be equal to 2V.An operating temperature of -40°C~105°C is recommended for stable operation.

SPSX271M02R Features

3A @ 100kHz ripple current on a high frequency
a 9mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 2V
an operating temperature of -40°C~105°C
