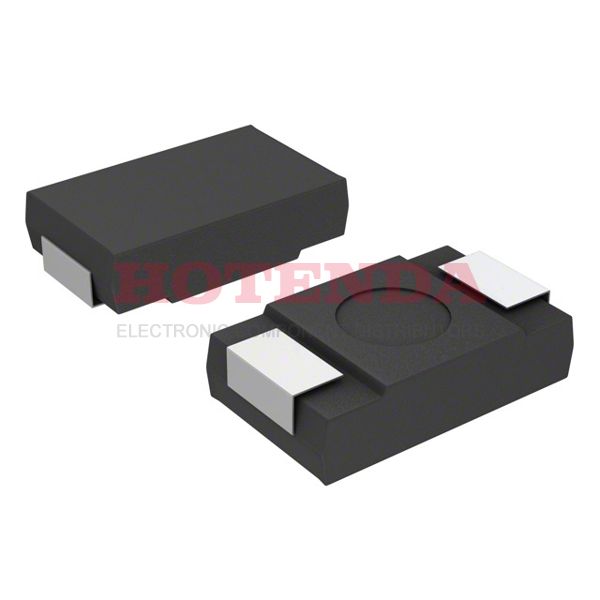

Name: SPCX221M04R
Brand: Cornell Dubilier Electronics (CDE)
SKU: SPCX221M04R
Availability: InStock

new-10%

SPCX221M04R

Manufacturer part number:SPCX221M04R

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:220μF ±20% 2917 (7343 Metric) 0.075 1.90mm Tape & Reel (TR) 15mOhm SPCX Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:SPCX221M04R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	J BEND
Surface Mount Land Size	0.287Lx0.169W 7.30mmx4.30mm
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Series	SPCX
Published	2013
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Tin (Sn)
Applications	General Purpose
HTS Code	8532.29.00.40
Capacitance	220μF
Voltage - Rated DC	4V
Packing Method	TR, 13 INCH
ESR (Equivalent Series Resistance)	15mOhm
Polarity	POLARIZED
Rated (DC) Voltage (URdc)	4V
Lifetime @ Temp	1000 Hrs @ 105°C
Leakage Current	0.088mA
Ripple Current	2.7A
Life (Hours)	1000 hours
Tan Delta	0.06
Ripple Current @ High Frequency	2.7A @ 100kHz
Height Seated (Max)	0.075 1.90mm
Length	7.3mm
Width	4.3mm
RoHS Status	ROHS3 Compliant

SPCX221M04R Product Details

SPCX221M04R Overview

2.7A @ 100kHz ripple current @ High Frequency is needed to power systems.There is an ESR (Equivalent Series Resistance) of 15mOhm on this electrical device.(DC) voltage URdc of 4V is required for stable operation.Ideally, the operating temperature should be -40°C~105°C.

SPCX221M04R Features

2.7A @ 100kHz ripple current on a high frequency
a 15mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 4V
an operating temperature of -40°C~105°C
