SFC37S17.5K291B-F

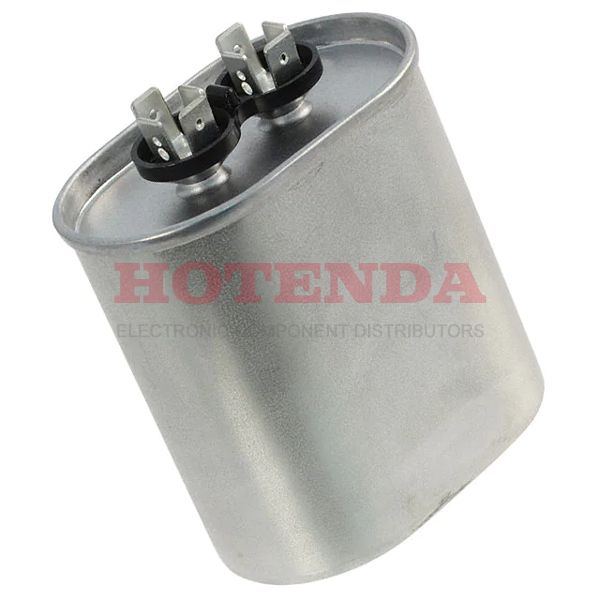

  • SFC37S17.5K291B-F - SF 17.5μF Film Capacitor ±10% Radial, Can Quick Connect, Disconnect 370V-AC Polypropylene (PP), Metallized Brackets, Chassis Mount, Holder
  • SFC37S17.5K291B-F - SF 17.5μF Film Capacitor ±10% Radial, Can Quick Connect, Disconnect 370V-AC Polypropylene (PP), Metallized Brackets, Chassis Mount, Holder

SFC37S17.5K291B-F

SFC37S17.5K291B-F

Cornell Dubilier Electronics (CDE)

SF 17.5μF Film Capacitor ±10% Radial, Can Quick Connect, Disconnect 370V-AC Polypropylene (PP), Metallized Brackets, Chassis Mount, Holder

SOT-23

SFC37S17.5K291B-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Brackets, Chassis Mount, Holder
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Terminal Shape BINDING POST
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~70°C
PackagingBulk
Series SF
Size / Dimension 2.910Lx1.910W 73.91mmx48.51mm Lip
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Quick Connect, Disconnect
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Motor Run
Additional FeatureRATED AC VOLTAGE (V): 370
HTS Code8532.25.00.10
Capacitance 17.5μF
Voltage - Rated AC 370V
Lead Pitch 20.574mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.810 20.57mm
Height 48.514mm
Height Seated (Max) 3.030 76.96mm
Length 73.914mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:1457 items

SFC37S17.5K291B-F Product Details

SFC37S17.5K291B-F Overview


Lead spacing is 0.810 20.57mm for this electrical device.Temperatures of -40°C~70°C allow the device to operate.

SFC37S17.5K291B-F Features



SFC37S17.5K291B-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) SFC37S17.5K291B-F applications of film capacitors.

  • Coupling, decoupling
  • Compact fluorescent lamps (CFL)
  • Filters
  • Switch-mode power supplies
  • RFI for automotive
  • Lighting
  • Bypassing
  • Battery management system
  • Electronic ballasts
  • TV and monitor sets
