SCRN241R-F

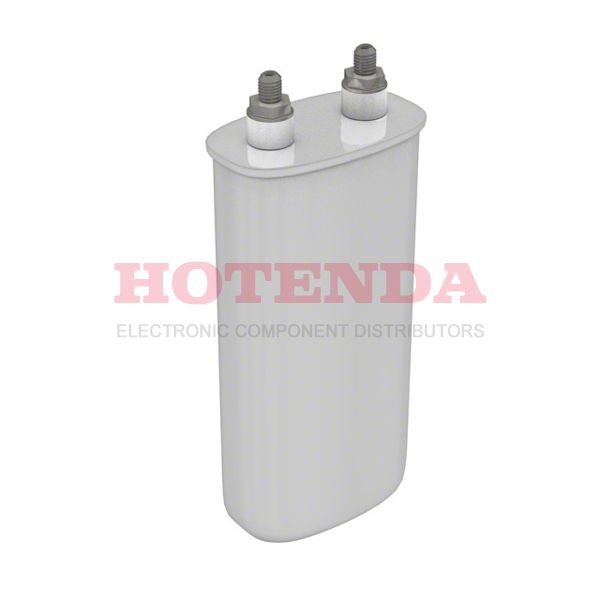

  • SCRN241R-F - SCR 1μF Film Capacitor ±10% Radial, Can Threaded, Male 1.5kV-DC 1500Vpk 1.5KVPK-AC Paper, Metallized Brackets, Chassis Mount, Holder
  • SCRN241R-F - SCR 1μF Film Capacitor ±10% Radial, Can Threaded, Male 1.5kV-DC 1500Vpk 1.5KVPK-AC Paper, Metallized Brackets, Chassis Mount, Holder

SCRN241R-F

SCRN241R-F

Cornell Dubilier Electronics (CDE)

SCR 1μF Film Capacitor ±10% Radial, Can Threaded, Male 1.5kV-DC 1500Vpk 1.5KVPK-AC Paper, Metallized Brackets, Chassis Mount, Holder

SOT-23

SCRN241R-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Brackets, Chassis Mount, Holder
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Terminal Shape BINDING POST
Number of Pins 2
Dielectric MaterialPaper, Metallized
Operating Temperature-40°C~80°C
PackagingBulk
Published 2010
Series SCR
Size / Dimension 2.160Lx1.310W 54.86mmx33.27mm Lip
Tolerance ±10%
JESD-609 Code e2
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Threaded, Male
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
Applications Commutation; High Frequency, Switching; High Pulse, DV/DT
Voltage - Rated 1.5kV
Additional FeatureRATED AC VOLTAGE (V): 1500
Capacitance 1μF
Voltage - Rated DC 1.5kV
Depth 33.274mm
Voltage - Rated AC 1500Vpk 1.5KVPK
Lead Pitch 20.574mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.810 20.57mm
Rated (DC) Voltage (URdc) 1500V
Life (Hours) 40000 hours
Height 33.274mm
Height Seated (Max) 2.940 74.68mm
Length 54.864mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:114 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$57.207337$57.207337
10$53.969186$539.69186
100$50.914326$5091.4326
500$48.032384$24016.192
1000$45.313569$45313.569

SCRN241R-F Product Details

SCRN241R-F Overview


To function, systems must have a rated (DC) voltage (URdc) of 1500V.A 0.810 20.57mm lead spacing is used in this electrical device.In a temperature range of -40°C~80°C, the device can be operated.

SCRN241R-F Features


a rated (DC) voltage (URdc) of 1500V


SCRN241R-F Applications


There are a lot of Cornell Dubilier Electronics (CDE)
SCRN241R-F applications of film capacitors.


  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
