FCP2416H224G-D4

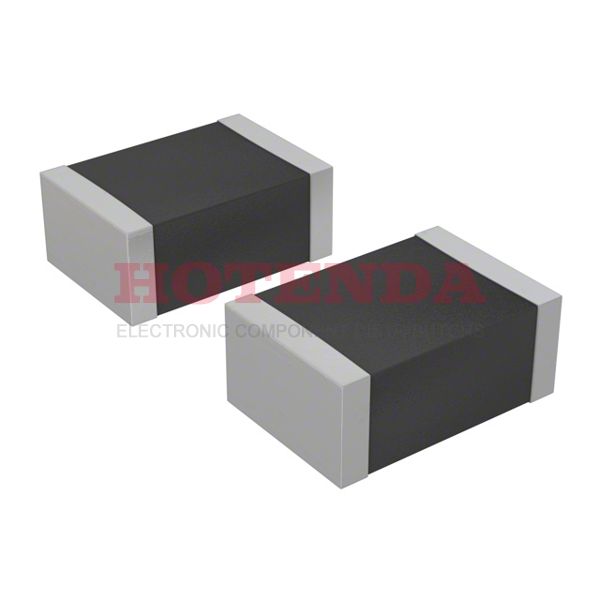

  • FCP2416H224G-D4 - FCP 0.22μF Film Capacitor ±2% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount
  • FCP2416H224G-D4 - FCP 0.22μF Film Capacitor ±2% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

FCP2416H224G-D4

FCP2416H224G-D4

Cornell Dubilier Electronics (CDE)

FCP 0.22μF Film Capacitor ±2% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

SOT-23

FCP2416H224G-D4 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2416 (6041 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS)
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2013
Series FCP
Size / Dimension 0.236Lx0.161W 6.00mmx4.10mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Type General Purpose
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications High Frequency, Switching
Voltage - Rated 50V
HTS Code8532.25.00.45
Capacitance 0.22μF
Voltage - Rated DC 50V
Packing Method TR
Reach Compliance Code unknown
Case Code (Metric) 6041
Dielectric PPS
Height 2.8mm
Height Seated (Max) 0.110 2.80mm
Length 6mm
Width 4.1mm
RoHS StatusROHS3 Compliant
In-Stock:2696 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.515547$2.515547
10$2.373158$23.73158
100$2.238828$223.8828
500$2.112102$1056.051
1000$1.992549$1992.549

FCP2416H224G-D4 Product Details

FCP2416H224G-D4 Overview


Temperatures of -55°C~125°C are suitable for operating the device.

FCP2416H224G-D4 Features



FCP2416H224G-D4 Applications


There are a lot of Cornell Dubilier Electronics (CDE) FCP2416H224G-D4 applications of film capacitors.

  • Audio/video equipment
  • RFI for automotive
  • Filters
  • Mobile communications
  • Electronic ballasts
  • RF Modules
  • Compact fluorescent lamps (CFL)
  • Satellite TV
  • Battery management system
  • Industrial and automotive inverters
