FCN1913C224J

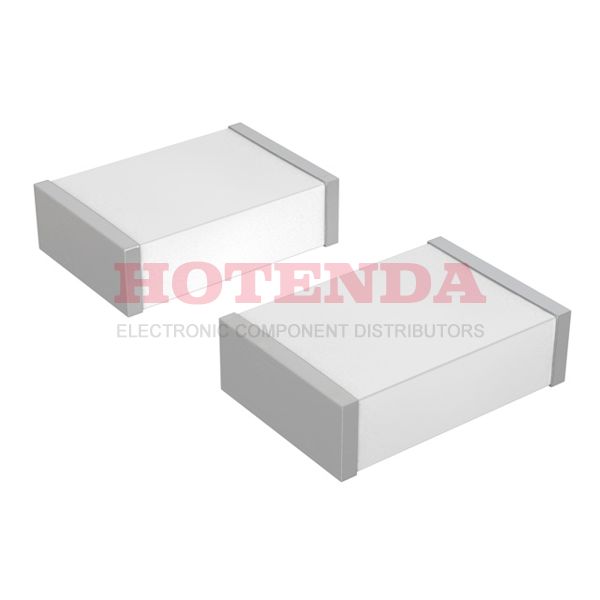

  • FCN1913C224J - FCN 0.22μF Film Capacitor ±5% 1913 (4833 Metric) Solder Pads 16V-DC 12V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount
  • FCN1913C224J - FCN 0.22μF Film Capacitor ±5% 1913 (4833 Metric) Solder Pads 16V-DC 12V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

FCN1913C224J

FCN1913C224J

Cornell Dubilier Electronics (CDE)

FCN 0.22μF Film Capacitor ±5% 1913 (4833 Metric) Solder Pads 16V-DC 12V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

SOT-23

FCN1913C224J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1913 (4833 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2015
Series FCN
Size / Dimension 0.189Lx0.130W 4.80mmx3.30mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.45
Capacitance 0.22μF
Voltage - Rated DC 16V
Packing Method TR, 13 INCH
Reach Compliance Code unknown
Voltage - Rated AC 12V
Capacitor Type FILM CAPACITOR
Rated (AC) Voltage (URac) 12V
Height Seated (Max) 0.102 2.60mm
Length 4.8mm
Width 3.3mm
RoHS StatusROHS3 Compliant
In-Stock:3168 items

FCN1913C224J Product Details

FCN1913C224J Overview


Powering systems requires an internal rated (AC) voltage (URac) of 12V.The device is capable of operating at the temperature of -55°C~105°C.

FCN1913C224J Features


an internal rated (AC) voltage (URac) of 12V

FCN1913C224J Applications


There are a lot of Cornell Dubilier Electronics (CDE) FCN1913C224J applications of film capacitors.

  • Switch-mode power supplies
  • Coupling, decoupling
  • Snubbering
  • Global positioning systems
  • Test and measuring equipment
  • RFI for automotive
  • TV and monitor sets
  • Matching networks
  • Switch mode power supplies
  • Satellite TV
