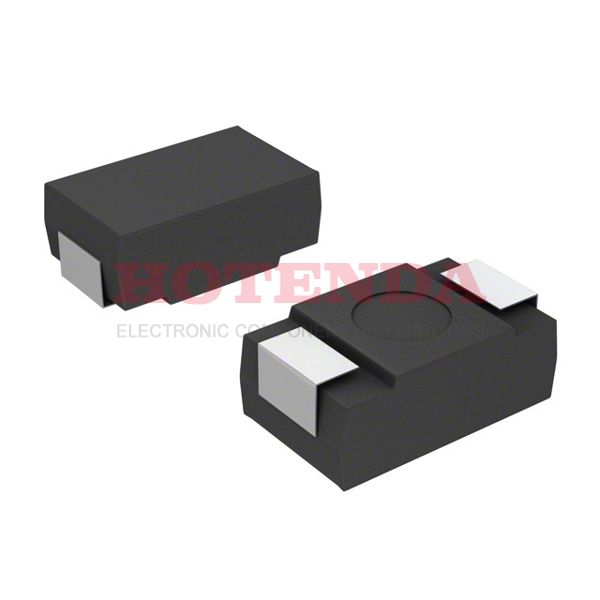

Name: ESRD271M02XB
Brand: Cornell Dubilier Electronics (CDE)
SKU: ESRD271M02XB
Availability: InStock

new-10%

ESRD271M02XB

Manufacturer part number:ESRD271M02XB

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:ESRD271M02XB datasheet pdf and Aluminum - Polymer Capacitors product details from Cornell Dubilier Electronics (CDE) stock available on our website

Case Package:SOT-23

Datasheet:ESRD271M02XB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	J BEND
Dielectric Material	Aluminium
Surface Mount Land Size	0.287Lx0.169W 7.30mmx4.30mm
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2002
Series	ESRD
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Tin (Sn)
Applications	Bypass, Decoupling
Capacitance	270μF
Voltage - Rated DC	2V
ESR (Equivalent Series Resistance)	12mOhm
Polarity	POLARIZED
Rated (DC) Voltage (URdc)	2V
Lifetime @ Temp	1000 Hrs @ 105°C
Leakage Current	0.0324mA
Ripple Current	3.3A
Life (Hours)	1000 hours
Tan Delta	0.1
Ripple Current @ High Frequency	3.3A @ 100kHz
Height	2.8mm
Height Seated (Max)	0.110 2.80mm
Length	7.3mm
Width	4.3mm
RoHS Status	ROHS3 Compliant

ESRD271M02XB Product Details

ESRD271M02XB Overview

3.3A @ 100kHz ripple current @ high frequency is required in order to power systems.A value of 12mOhm is assigned to the electrical device's ESR (Equivalent Series Resistance).URdc must be set to 2V for stable operation.When operating at -55°C~105°C, the temperature should remain stable.

ESRD271M02XB Features

3.3A @ 100kHz ripple current on a high frequency
a 12mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 2V
an operating temperature of -55°C~105°C
