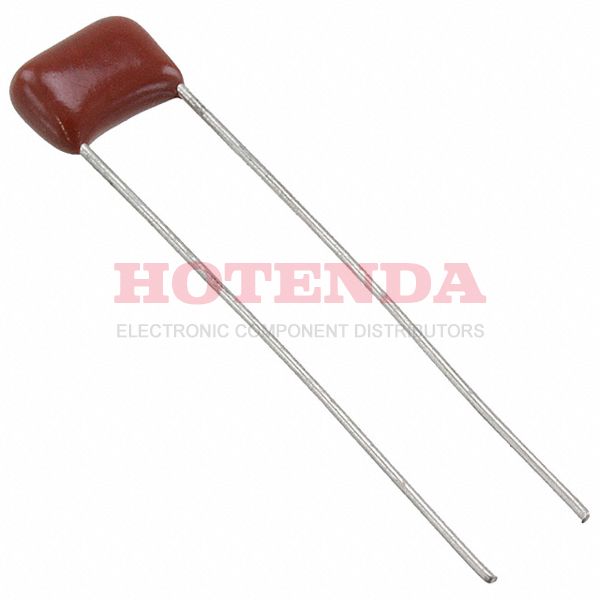

Name: DSF050J104
Brand: Cornell Dubilier Electronics (CDE)
SKU: DSF050J104
Availability: InStock

new-10%

DSF050J104

Manufacturer part number:DSF050J104

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:DSF 0.1μF Film Capacitor ±5% Radial PC Pins 50V-DC 800mV-AC Polyester, Metallized - Stacked PCB, Through Hole

Case Package:SOT-23

Datasheet:DSF050J104 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	PCB, Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Number of Pins	2
Dielectric Material	Polyester, Metallized - Stacked
Operating Temperature	-40°C~85°C
Packaging	Bulk
Published	2002
Series	DSF
Size / Dimension	0.287Lx0.157W 7.30mmx4.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	General Purpose
Capacitance	0.1μF
Voltage - Rated DC	50V
Depth	4mm
Voltage - Rated AC	800mV
Lead Pitch	5mm
Capacitor Type	FILM CAPACITOR
Dielectric	PET
Lead Spacing	0.197 5.00mm
Insulation Resistance	3GOhm
Lead Diameter	500 μm
Voltage	63V
Dissipation Factor	1 %
Lead/Base Style	Straight
Diameter	50μm
Height	4mm
Height Seated (Max)	0.236 6.00mm
Length	7.3mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

DSF050J104 Product Details

DSF050J104 Overview

As a result of the device, there is a resistance of insulation of 3GOhm.Electrical devices such as this have a lead spacing of 0.197 5.00mm.In addition to operating at -40°C~85°C degrees, the device is capable of operating at other temperatures as well.
