DPP2S1K-F

  • DPP2S1K-F - DPP 10000pF Film Capacitor ±10% Radial PC Pins 250V-DC 140V-AC Polypropylene (PP), Metallized Through Hole
  • DPP2S1K-F - DPP 10000pF Film Capacitor ±10% Radial PC Pins 250V-DC 140V-AC Polypropylene (PP), Metallized Through Hole

DPP2S1K-F

DPP2S1K-F

Cornell Dubilier Electronics (CDE)

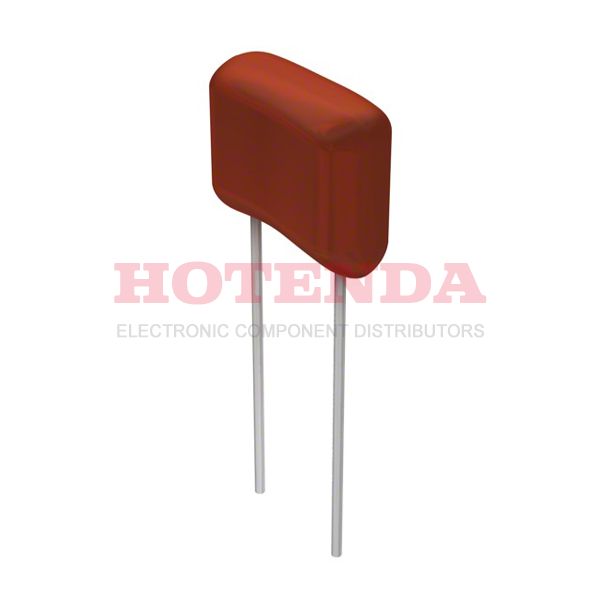

DPP 10000pF Film Capacitor ±10% Radial PC Pins 250V-DC 140V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

DPP2S1K-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series DPP
Size / Dimension 0.591Lx0.276W 15.00mmx7.00mm
Tolerance ±10%
JESD-609 Code e3
Feature Low ESR
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 140
HTS Code8532.25.00.70
Capacitance 10000pF
Voltage - Rated DC 250V
Terminal Pitch10mm
Voltage - Rated AC 140V
Lead Pitch 10.0076mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.394 10.00mm
Size Code 5928
Height Seated (Max) 0.591 15.00mm
Length 15mm
Width 7mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:1138 items

DPP2S1K-F Product Details

DPP2S1K-F Overview


Its lead spacing is 0.394 10.00mm.Devices with a -55°C~105°C temperature capability can be operated.

DPP2S1K-F Features



DPP2S1K-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) DPP2S1K-F applications of film capacitors.

  • Satellite TV
  • Electronic ballasts
  • RF Modules
  • IGBT
  • Audio/video equipment
  • RFI for automotive
  • Matching networks
  • Coupling, decoupling
  • Filtering
  • Global positioning systems
