DME1W5P6K

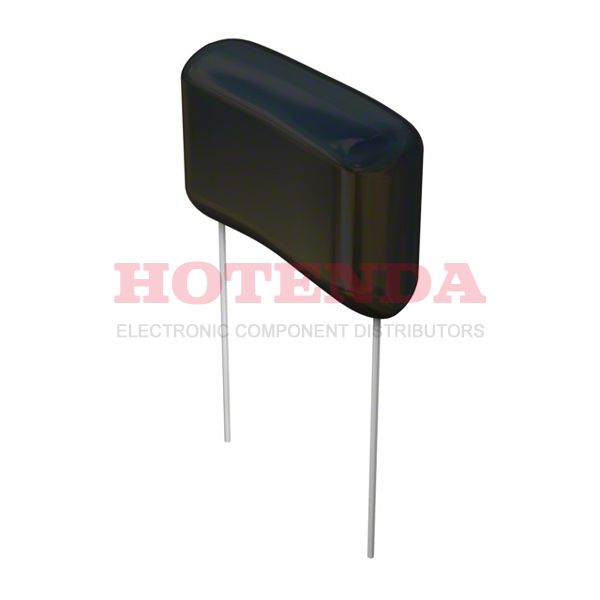

  • DME1W5P6K - DME 5.6μF Film Capacitor ±10% Radial PC Pins 100V-DC 65V-AC Polyester, Metallized Through Hole
  • DME1W5P6K - DME 5.6μF Film Capacitor ±10% Radial PC Pins 100V-DC 65V-AC Polyester, Metallized Through Hole

DME1W5P6K

DME1W5P6K

Cornell Dubilier Electronics (CDE)

DME 5.6μF Film Capacitor ±10% Radial PC Pins 100V-DC 65V-AC Polyester, Metallized Through Hole

SOT-23

DME1W5P6K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Published 2006
Series DME
Size / Dimension 1.024Lx0.354W 26.00mmx9.00mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 65
HTS Code8532.25.00.70
Capacitance 5.6μF
Voltage - Rated DC 100V
Terminal Pitch22.5mm
Reach Compliance Code unknown
Voltage - Rated AC 65V
Lead Pitch 22.5044mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.886 22.50mm
Custom Capabilities Other Capacitance Value, Sizes Available
Height 17.5mm
Height Seated (Max) 0.689 17.50mm
Length 26mm
Width 9mm
RoHS StatusNon-RoHS Compliant
In-Stock:1026 items

DME1W5P6K Product Details

DME1W5P6K Overview


There is 0.886 22.50mm lead spacing on this electrical device.-55°C~125°C is the maximum temperature at which the device can operate.

DME1W5P6K Features




DME1W5P6K Applications


There are a lot of Cornell Dubilier Electronics (CDE)
DME1W5P6K applications of film capacitors.


  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
