Name: DME10S22K-F
Brand: Cornell Dubilier Electronics (CDE)
SKU: DME10S22K-F
Price: 1.19000 USD
Availability: InStock

new-10%

DME10S22K-F

Manufacturer part number:DME10S22K-F

Manufacturer:Cornell Dubilier Electronics (CDE)

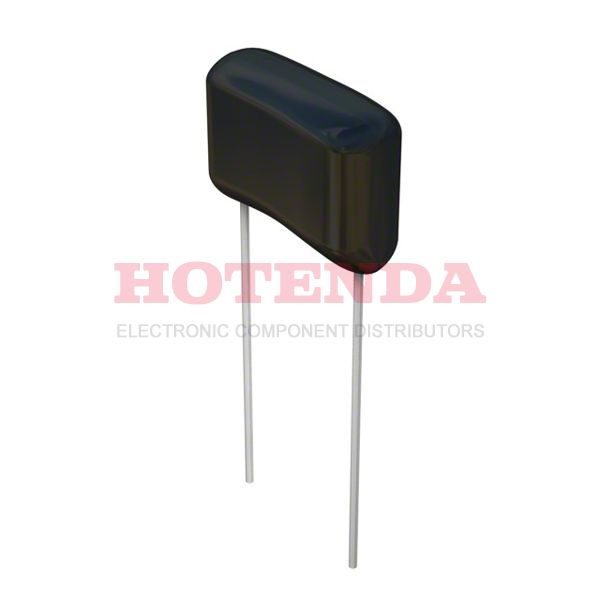

Description:DME 0.022μF Film Capacitor ±10% Radial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole

Case Package:SOT-23

Datasheet:DME10S22K-F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Number of Pins	2
Dielectric Material	Polyester, Metallized
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	DME
Size / Dimension	0.610Lx0.295W 15.50mmx7.50mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	General Purpose
Capacitance	0.022μF
Voltage - Rated DC	1kV
Voltage - Rated AC	250V
Lead Pitch	12.5mm
Capacitor Type	FILM CAPACITOR
Dielectric	PET
Lead Spacing	0.492 12.50mm
Rated (DC) Voltage (URdc)	1000V
Lead Diameter	800 μm
Size Code	6130
Life (Hours)	1000 hours
Height	15.5mm
Height Seated (Max)	0.669 17.00mm
Width	7.5mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

DME10S22K-F Product Details

DME10S22K-F Overview

For systems to operate, a rated (DC) voltage (URdc) of 1000V must be applied internally.A 0.492 12.50mm lead spacing is used in this electrical device.In addition to operating at -55°C~125°C degrees, the device is capable of operating at other temperatures as well.
