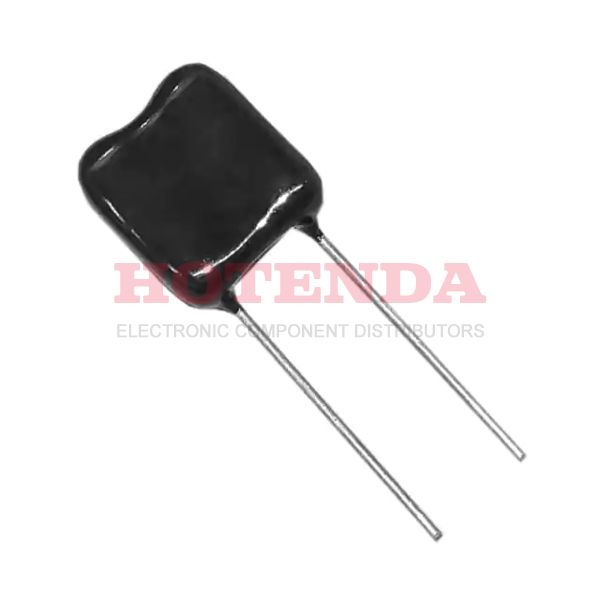

Name: CM05FD391JO3
Brand: Cornell Dubilier Electronics (CDE)
SKU: CM05FD391JO3
Price: 4.74000 USD
Availability: InStock

new-10%

CM05FD391JO3

Manufacturer part number:CM05FD391JO3

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:CM05FD391JO3 datasheet pdf and Mica and PTFE Capacitors product details from Cornell Dubilier Electronics (CDE) stock available on our website

Case Package:SOT-23

Datasheet:CM05FD391JO3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Mica
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2006
Series	CM05
Size / Dimension	0.469Lx0.209W 11.90mmx5.30mm
Tolerance	±5%
JESD-609 Code	e0
Feature	General Purpose
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	70 ppm/°C
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8532.29.00.20
Capacitance	390pF
Voltage - Rated DC	500V
Packing Method	TR
Terminal Pitch	5.72mm
Depth	5.3mm
Military Standard	MIL-C-5
Lead Pitch	5.9mm
Lead Spacing	0.232 5.90mm
Lead Diameter	600 μm
Size Code	4722
Height Seated (Max)	0.390 9.90mm
Length	11.94mm
Width	5.59mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

CM05FD391JO3 Product Details

CM05FD391JO3 Overview

This part is measured at its terminal pitch 5.72mm.The size/dimension of this module is 0.469Lx0.209W 11.90mmx5.30mm in order to provide high reliability.The voltage - Rated DC of 500V needs to be provided to fully play its function.Parts have a 70 ppm/°C temperature coefficient.Keeping the device at -55°C~125°C during operation is recommended.
