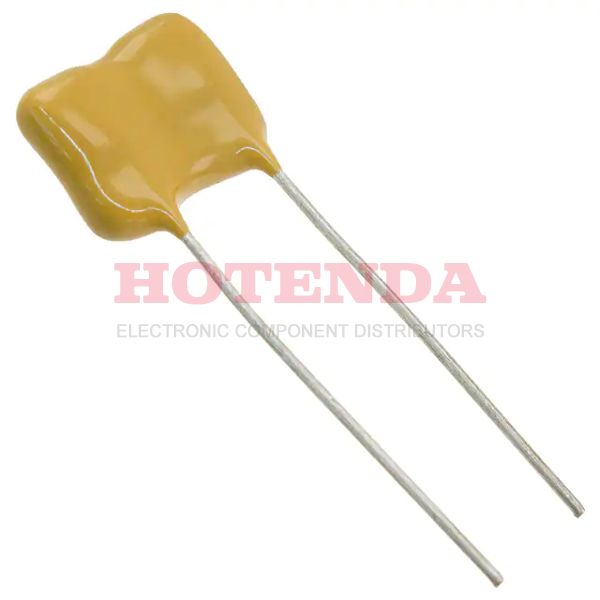

Name: CD19FD331JO3F
Brand: Cornell Dubilier Electronics (CDE)
SKU: CD19FD331JO3F
Price: 4.01000 USD
Availability: InStock

new-10%

CD19FD331JO3F

Manufacturer part number:CD19FD331JO3F

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:CD19FD331JO3F datasheet pdf and Mica and PTFE Capacitors product details from Cornell Dubilier Electronics (CDE) stock available on our website

Case Package:SOT-23

Datasheet:CD19FD331JO3F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	PCB, Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Number of Pins	2
Dielectric Material	Mica
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2005
Series	CD19
Size / Dimension	0.642Lx0.189W 16.30mmx4.80mm
Tolerance	±5%
JESD-609 Code	e3
Feature	General Purpose
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	70 ppm/°C
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Capacitance	330pF
Voltage - Rated DC	500V
Packing Method	TR
Depth	4.8mm
Military Standard	Not
Lead Pitch	8.7mm
Lead Spacing	0.343 8.70mm
Lead Diameter	800 μm
Size Code	6419
Voltage	500V
Height	12.7mm
Height Seated (Max)	0.500 12.70mm
Length	16.3mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

CD19FD331JO3F Product Details

CD19FD331JO3F Overview

Due to its 0.642Lx0.189W 16.30mmx4.80mm size/dimension, it allows for high reliability.A voltage of 500V needs to be provided for it to function properly.Parts have a 70 ppm/°C temperature coefficient.It is recommended that the device remain at -55°C~125°C at all times when in operation.
