Name: CD16FD681JO3F
Brand: Cornell Dubilier Electronics (CDE)
SKU: CD16FD681JO3F
Price: 2.86000 USD
Availability: InStock

new-10%

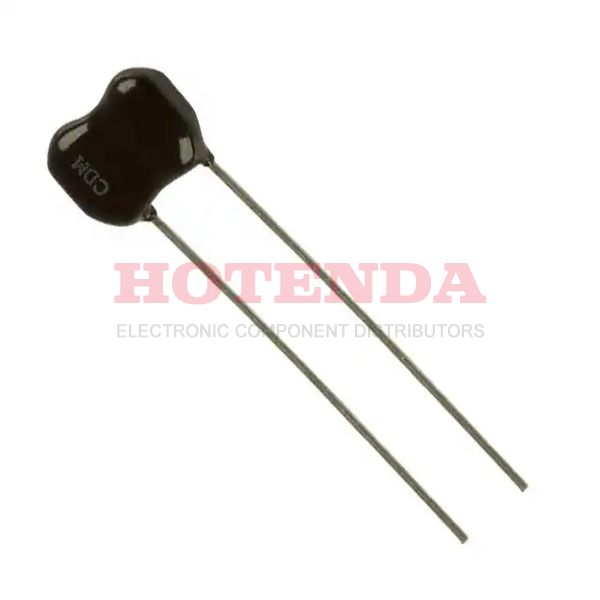

CD16FD681JO3F

Manufacturer part number:CD16FD681JO3F

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:CD16 Series 680pF Mica Capacitor ±5% Bulk -55°C~125°C Through Hole 70ppm/Cel ppm/°C 2 Terminations Radial

Case Package:SOT-23

Datasheet:CD16FD681JO3F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Dielectric Material	Mica
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	CD16
Published	2006
Size / Dimension	0.461Lx0.181W 11.70mmx4.60mm
Tolerance	±5%
JESD-609 Code	e3
Feature	RF, High Q, Low Loss
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	70ppm/Cel ppm/°C
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Additional Feature	RATED AC VOLTAGE(V) : 300
HTS Code	8532.29.00.20
Capacitance	680pF
Voltage - Rated DC	500V
Packing Method	TR
Terminal Pitch	5.944mm
Depth	4.6mm
Military Standard	Not
Lead Pitch	5.9436mm
Lead Spacing	0.234 5.94mm
Lead Diameter	800 μm
Size Code	4618
Rated (AC) Voltage (URac)	300V
Height Seated (Max)	0.500 12.70mm
Length	11.7mm
RoHS Status	ROHS3 Compliant

CD16FD681JO3F Product Details

CD16FD681JO3F Overview

Pitch 5.944mm is measured on the part's terminals.To ensure high reliability, its size/dimension is 0.461Lx0.181W 11.70mmx4.60mm.Providing a DC voltage - Rated DC of 500V is required to fully operate the device.Parts have a 70ppm/Cel ppm/°C temperature coefficient.If the device is operating, leave it at -55°C~125°C at all times.
