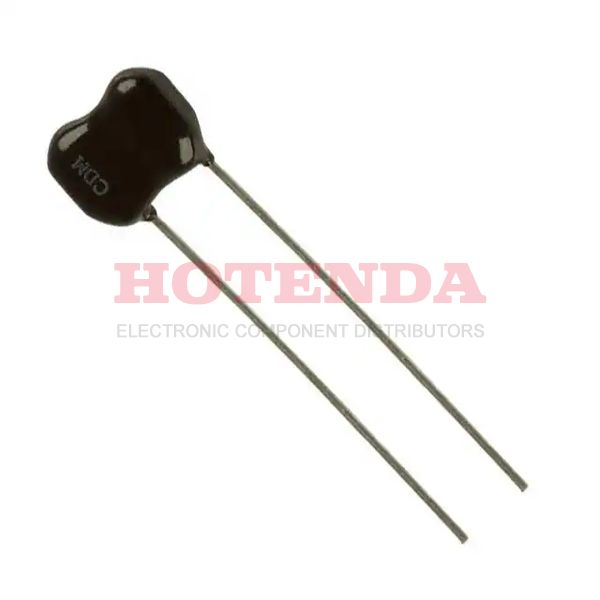

Name: CD15FC821JO3F
Brand: Cornell Dubilier Electronics (CDE)
SKU: CD15FC821JO3F
Price: 6.27000 USD
Availability: InStock

new-10%

CD15FC821JO3F

Manufacturer part number:CD15FC821JO3F

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:CD15FC821JO3F datasheet pdf and Mica and PTFE Capacitors product details from Cornell Dubilier Electronics (CDE) stock available on our website

Case Package:SOT-23

Datasheet:CD15FC821JO3F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	PCB, Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Number of Pins	2
Dielectric Material	Mica
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2005
Series	CD15
Size / Dimension	0.469Lx0.209W 11.90mmx5.30mm
Tolerance	±5%
JESD-609 Code	e3
Feature	General Purpose
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	70 ppm/°C
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Capacitance	820pF
Voltage - Rated DC	300V
Packing Method	TR
Depth	5.3mm
Military Standard	Not
Lead Pitch	5.9mm
Lead Spacing	0.232 5.90mm
Lead Diameter	600 μm
Voltage	300V
Height	9.9mm
Height Seated (Max)	0.390 9.90mm
Length	11.9mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CD15FC821JO3F Product Details

CD15FC821JO3F Overview

The size/dimension of this device is 0.469Lx0.209W 11.90mmx5.30mm in order to ensure a high level of reliability.To properly function, the voltage - Rated DC of 300V must be provided.This part is set with a 70 ppm/°C temperature coefficient.When operating the device, it is recommended that the voltage be set to -55°C~125°C.
