Name: CD15FA122JO3F
Brand: Cornell Dubilier Electronics (CDE)
SKU: CD15FA122JO3F
Price: 4.93000 USD
Availability: InStock

new-10%

CD15FA122JO3F

Manufacturer part number:CD15FA122JO3F

Manufacturer:Cornell Dubilier Electronics (CDE)

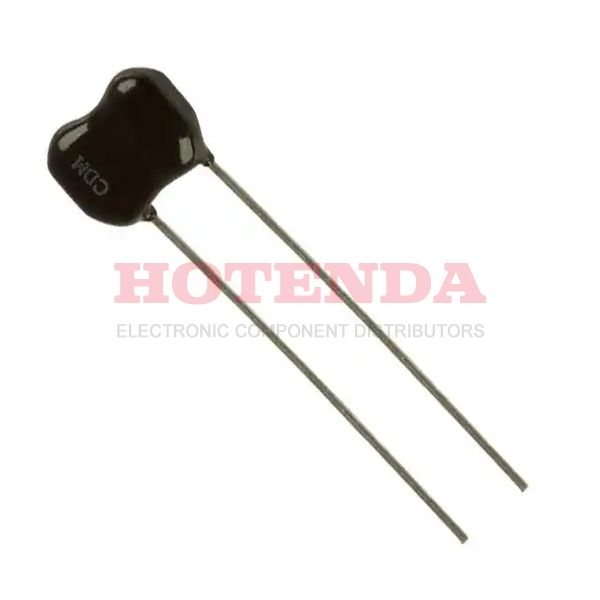

Description:CD15 Series 1200pF Mica Capacitor ±5% Bulk -55°C~125°C Through Hole 70 ppm/°C 2 Terminations Radial

Case Package:SOT-23

Datasheet:CD15FA122JO3F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Dielectric Material	Mica
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	CD15
Published	2011
Size / Dimension	0.488Lx0.240W 12.40mmx6.10mm
Tolerance	±5%
JESD-609 Code	e3
Feature	General Purpose
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	70 ppm/°C
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
HTS Code	8532.29.00.20
Capacitance	1200pF
Voltage - Rated DC	100V
Packing Method	TR
Depth	6.1mm
Military Standard	Not
Lead Pitch	5.9mm
Lead Spacing	0.232 5.90mm
Lead Diameter	600 μm
Size Code	4924
Height Seated (Max)	0.421 10.70mm
Length	12.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CD15FA122JO3F Product Details

CD15FA122JO3F Overview

A 0.488Lx0.240W 12.40mmx6.10mm dimension and a size/dimension of 0.488Lx0.240W 12.40mmx6.10mm ensure reliability.This device requires a voltage of - Rated DC of 100V in order to be fully functional.70 ppm/°C is set as the temperature coefficient for the part.It is recommended to leave the device at -55°C~125°C at all times.
