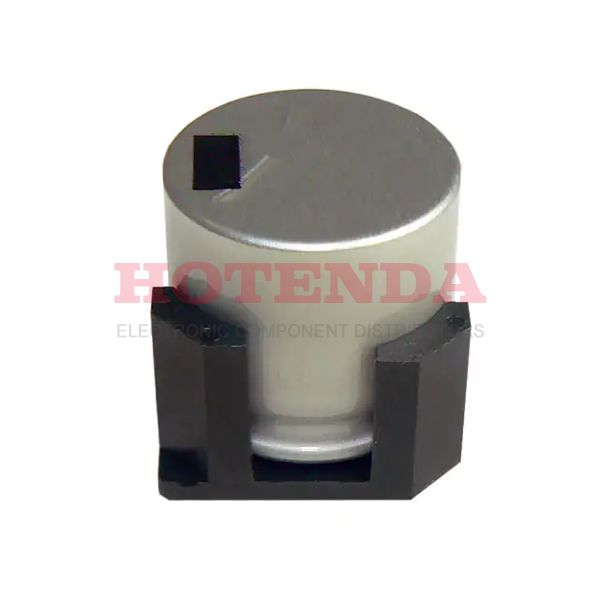

AFK337M2AR44T-F Overview
During full charge, the ripple current is 917mA @ 100kHz.150mOhm @ 100kHz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current is 687.8mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.669 17.00mm.It operates at a dissipation factor of 0.07 % (0.07 %).A voltage of 100V DC operates this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.
AFK337M2AR44T-F Features
the ripple current is 917mA @ 100kHz.
the ripple current is 687.8mA @ 120Hz.
a dissipation factor of 0.07 %
voltage - Rated DC of 100V
an operating temperature of -55°C~105°C
AFK337M2AR44T-F Applications
There are a lot of Cornell Dubilier Electronics (CDE) AFK337M2AR44T-F applications of aluminum electrolytic capacitors.
- Smoothing and filtering applications
- Energy storage in pulse systems
- Computer motherboards
- Industrial systems
- Power supplies
- Frequency converters
- Uninterruptible power supplies
- Telecommunication
- Standard and switched mode power supplies
- Computer
