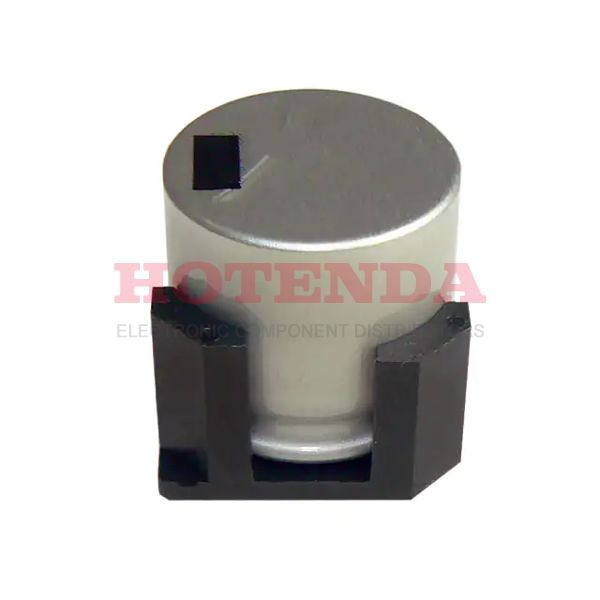

AFK227M2AR44T-F Overview
In terms of ripple current, it is 917mA @ 100kHz at full charge.In order to fully utilize 150mOhm @ 100kHz, ESR (Equivalent Series Resistance) needs to be provided.When the battery is charged to its lowest level, the ripple current is 687.8mA @ 120Hz.Sitting height (Max) should not exceed 0.669 17.00mm.There is a dissipation factor of 0.07 %.Voltage - Rated DC - is 100V.It is recommended to maintain the operating temperature at -55°C~105°C in order to maximize efficiency.
AFK227M2AR44T-F Features
the ripple current is 917mA @ 100kHz.
the ripple current is 687.8mA @ 120Hz.
a dissipation factor of 0.07 %
voltage - Rated DC of 100V
an operating temperature of -55°C~105°C
AFK227M2AR44T-F Applications
There are a lot of Cornell Dubilier Electronics (CDE) AFK227M2AR44T-F applications of aluminum electrolytic capacitors.
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Frequency converters
- Computer motherboards
- Energy storage in pulse systems
- Computer
- Power supplies
- Telecommunication
- Uninterruptible power supplies
- Industrial systems
