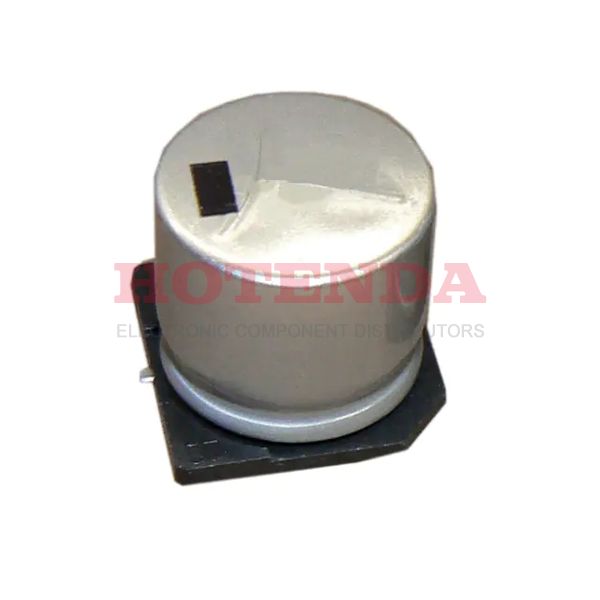

AFK107M25E16T-F Overview
In terms of ripple current, it is 300mA @ 100kHz at full charge.For 260mOhm @ 100kHz to fully function, the equivalent series resistance has to be provided.As far as the ripple current is concerned, it is 225mA @ 120Hz at the lowest charge.Keeping the maximum height of the seated person (Max) below 0.256 6.50mm is recommended.Despite its 0.14 % dissipation factor, it still operates.A voltage of 25V DC operates this capacitor.It is recommended to maintain the operating temperature at -55°C~105°C in order to maximize efficiency.
AFK107M25E16T-F Features
the ripple current is 300mA @ 100kHz.
the ripple current is 225mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C
AFK107M25E16T-F Applications
There are a lot of Cornell Dubilier Electronics (CDE) AFK107M25E16T-F applications of aluminum electrolytic capacitors.
- Energy storage in pulse systems
- Telecommunication
- Standard and switched mode power supplies
- Power supplies
- Uninterruptible power supplies
- Computer
- Computer motherboards
- Frequency converters
- Smoothing and filtering applications
- Industrial systems
