Name: 947D871K102DGRSN
Brand: Cornell Dubilier Electronics (CDE)
SKU: 947D871K102DGRSN
Price: 136.50000 USD
Availability: InStock

new

947D871K102DGRSN

Manufacturer part number:947D871K102DGRSN

Manufacturer:Cornell Dubilier Electronics (CDE)

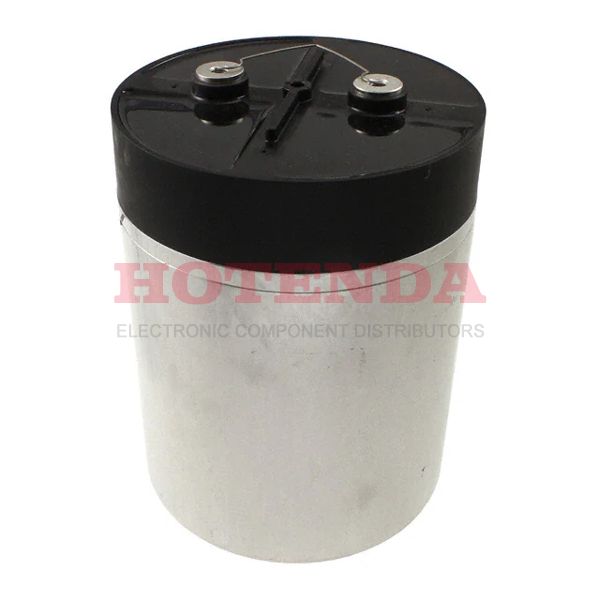

Description:947D 870μF Film Capacitor ±10% Radial, Can Threaded, Female 1kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:947D871K102DGRSN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis, Stud Mount
Package / Case	Radial, Can
Terminal Shape	BINDING POST
Number of Pins	2
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-45°C~85°C
Packaging	Bulk
Published	2014
Series	947D
Size / Dimension	4.567Dia 116.00mm
Tolerance	±10%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Threaded, Female
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
Capacitance	870μF
Voltage - Rated DC	1kV
Reach Compliance Code	unknown
Voltage - Rated AC	230V
Lead Pitch	50.0126mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
ESR (Equivalent Series Resistance)	1.4mOhm
Lead Spacing	1.969 50.00mm
Rated (DC) Voltage (URdc)	1000V
Diameter	116mm
Height Seated (Max)	5.000 127.00mm
RoHS Status	ROHS3 Compliant

947D871K102DGRSN Product Details

947D871K102DGRSN Overview

The rated (DC) voltage (URdc) of systems should be 1000V.1.4mOhm ESR (Equivalent Series Resistance) is present on the device.Its lead spacing is 1.969 50.00mm.-45°C~85°C is the maximum temperature at which the device can operate.
