Name: 947D571K102BHMSN
Brand: Cornell Dubilier Electronics (CDE)
SKU: 947D571K102BHMSN
Price: 114.43000 USD
Availability: InStock

new

947D571K102BHMSN

Manufacturer part number:947D571K102BHMSN

Manufacturer:Cornell Dubilier Electronics (CDE)

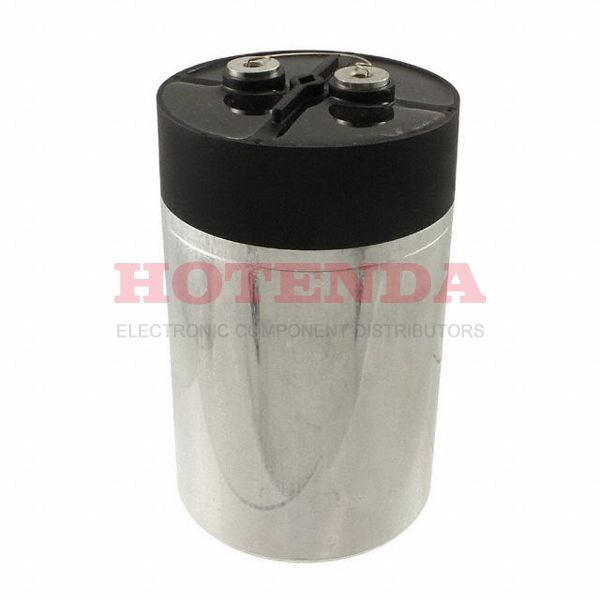

Description:947D 570μF Film Capacitor ±10% Radial, Can Threaded, Female 1kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:947D571K102BHMSN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis, Stud Mount
Package / Case	Radial, Can
Terminal Shape	BINDING POST
Number of Pins	2
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-45°C~85°C
Packaging	Bulk
Published	2014
Series	947D
Size / Dimension	3.543Dia 90.00mm
Tolerance	±10%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Threaded, Female
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
Capacitance	570μF
Voltage - Rated DC	1kV
Reach Compliance Code	unknown
Voltage - Rated AC	230V
Lead Pitch	45.0088mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
ESR (Equivalent Series Resistance)	2mOhm
Lead Spacing	1.772 45.00mm
Rated (DC) Voltage (URdc)	1000V
Diameter	90mm
Height Seated (Max)	5.394 137.00mm
RoHS Status	ROHS3 Compliant

947D571K102BHMSN Product Details

947D571K102BHMSN Overview

To work properly, systems need a rated (DC) voltage of 1000V.In the device, ESR (Equivalent Series Resistance) is 2mOhm.A 1.772 45.00mm lead spacing is used in this electrical device.Temperatures as low as -45°C~85°C are suitable for the device.
