Name: 947D112K901CLRSN
Brand: Cornell Dubilier Electronics (CDE)
SKU: 947D112K901CLRSN
Price: 163.25000 USD
Availability: InStock

new

947D112K901CLRSN

Manufacturer part number:947D112K901CLRSN

Manufacturer:Cornell Dubilier Electronics (CDE)

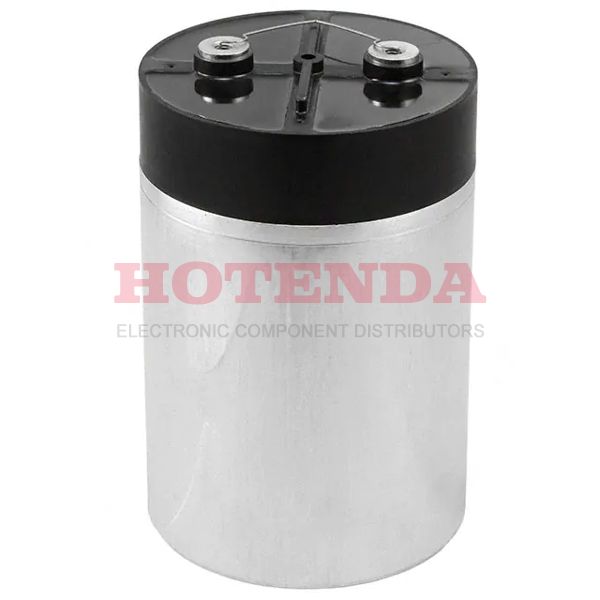

Description:947D 1100μF Film Capacitor ±10% Radial, Can Threaded, Female 900V-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:947D112K901CLRSN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis, Stud Mount
Package / Case	Radial, Can
Terminal Shape	BINDING POST
Number of Pins	2
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-45°C~85°C
Packaging	Bulk
Published	2014
Series	947D
Size / Dimension	3.937Dia 100.00mm
Tolerance	±10%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Threaded, Female
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
Capacitance	1100μF
Voltage - Rated DC	900V
Reach Compliance Code	unknown
Voltage - Rated AC	230V
Lead Pitch	50.0126mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
ESR (Equivalent Series Resistance)	2mOhm
Lead Spacing	1.969 50.00mm
Diameter	100mm
Height Seated (Max)	6.417 163.00mm
RoHS Status	ROHS3 Compliant

947D112K901CLRSN Product Details

947D112K901CLRSN Overview

A device with 2mOhm ESR (Equivalent Series Resistance) is present.Electrical devices have 1.969 50.00mm lead spacing.Temperatures as low as -45°C~85°C are suitable for the device.
