715P15454LD3

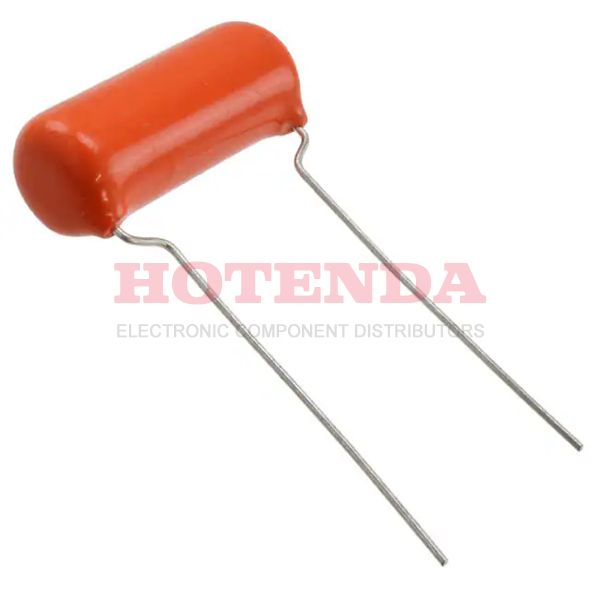

  • 715P15454LD3 - Orange Drop® 715P 0.15μF Film Capacitor ±5% Radial PC Pins 400V-DC 200V-AC Polypropylene (PP), Metallized PCB, Through Hole
  • 715P15454LD3 - Orange Drop® 715P 0.15μF Film Capacitor ±5% Radial PC Pins 400V-DC 200V-AC Polypropylene (PP), Metallized PCB, Through Hole

715P15454LD3

715P15454LD3

Cornell Dubilier Electronics (CDE)

Orange Drop® 715P 0.15μF Film Capacitor ±5% Radial PC Pins 400V-DC 200V-AC Polypropylene (PP), Metallized PCB, Through Hole

SOT-23

715P15454LD3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~85°C
PackagingBulk
Published 2001
Series Orange Drop® 715P
Size / Dimension 0.559Diax1.252L 14.20mmx31.80mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
ECCN Code EAR99
Color Orange
Applications High Frequency, Switching; High Pulse, DV/DT; Snubber
HTS Code8532.24.0060
Capacitance 0.15μF
Voltage - Rated DC 400V
Reach Compliance Code unknown
Voltage - Rated AC 200V
Lead Pitch 18.3mm
Dielectric PP
Lead Spacing0.720 18.30mm
Insulation Resistance2Ohm
Lead Diameter 800 μm
Voltage 400V
Life (Hours) 500 hours
Dissipation Factor0.049 %
Diameter 14.2mm
Height Seated (Max) 0.870 22.10mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:1386 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.861940$3.86194
10$3.643340$36.4334
100$3.437113$343.7113
500$3.242560$1621.28
1000$3.059018$3059.018

715P15454LD3 Product Details

715P15454LD3 Overview


Despite the device's insulation resistance, there is 2Ohm.A 0.720 18.30mm lead spacing is used in this electrical device.In a temperature range of -55°C~85°C, the device can be operated.

715P15454LD3 Features


2Ohm insulation resistance


715P15454LD3 Applications


There are a lot of Cornell Dubilier Electronics (CDE)
715P15454LD3 applications of film capacitors.


  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
